Quick Details
Description
- Place of Origin: Shandong, China (Mainland)
- Brand Name: Wide area

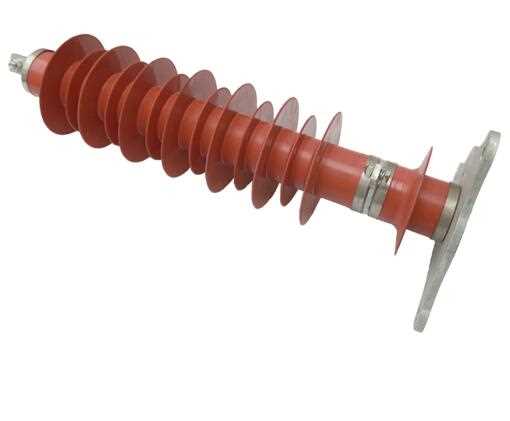

- Model Number: HY5WZ-51/134
- Color: Red
- Material: Polymeric metal oxide
- Housing: Silicone rubber
- Rated voltage: 51kv
- System voltage: 35kv
- creepage distance: 1300mm
- Application: High Voltage Equipment
- OEM: Available
Applicable technical conditions:
A. Applicable to indoor and outdoor;
B. Ambient temperature -40 ℃ ~ + 40 ℃;
C. Altitude does not exceed 2000m;
D. Power frequency is not less than 48Hz, no more than 62 Hz;
E. The working frequency voltage applied to the arrestor should not exceed the continuous operating voltage of the arrester (no gap type).
F. Earthquake intensity is 8 degrees and following areas;
G. The maximum wind speed does not exceed 35m / s.
Main technical parameters
|
Model
|
Nominal system voltage
|
Rated voltage
|
Continuous operation voltage
|
DC 1mA reference voltage
kV
|
2mS square wave flow capacity
A
|
Lightning impulse current residual
|
Steep wave impulse current residual
|
switching impulse-current residual voltage
|
creepage distance
|
|
|
kV (Valid value)
|
kV (Peak)
|
mm
|
|
HY5WZ-51/134
|
35
|
51
|
40.8
|
73
|
400
|
134
|
154
|
114
|
1300
|
|
Shandong WIDE AREA Technology CO., LTD. was founded in February 1999. It is located in Dongying High-tech Industrial Development Zone of Shandong Province. The company covers an area of 100 mu. The registered capital is 6 0 million yuan. At present, the company has 12 subsidiaries, 5 research centers and 1 office. The number of staff is more than 340, 55% of staff is undergraduate degree or above.
The company's business covers three broad areas, which including industrial automation control, information communication and software development. The company's products include integrated automation system of substation, power integrated monitoring system, video surveillance system, insulators and arresters, intelligent management system for oil well production, real time data center of industrial production. The company is an excellent high-tech enterprise, excellent software enterprise, excellent computer information system integration enterprise and service outsourcing enterprise in Shandong Province. The company has 23 patents and 19 software copyrights. It also has many qualifications, such as computer information system integration, communication information network system integration, information engineering supervision, electronic and intelligent engineering construction, power transmission project construction. The company was certified by ISO9001, ISO14001, OHSAS18001, ISO27001, CMMI4 software certification, and won the national quality project award in 2017.
