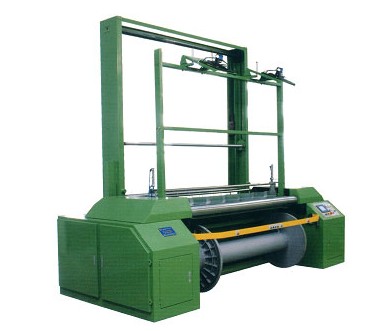

HFGA135 Warp Leasing Machine

HFGA135 Warp Leasing Machine can be completed with various types of rope dying machine. It’s applied for winding individual yarn ends from a rope-like bundle and distributes them evenly over a section beam.

Product Details

Quick Details Parameter

Working width: : 1400mm, 1600mm, 1800mm
Beam dia.: : ≤1000mm
Warping speed: : 10-250m/min
Brake distance: : ≤1.5m(250m/min)
Winding density: : 0.45-0.65g/cm3
Reed traversing distance: : 0-20mm


Technical Characteristics
·Advanced computerized control, touch screen display monitoring current running condition, comprehensive trouble shooting and analyzing, easy operation, direct and informative.
·Inverter control ensures constant yarn winding.
·Reciprocating yarn guide, easy for leasing, decrease broken ends and increase the warping speed.
·Yarn storage creel with broken yarn reversing device, easy to find the broken yarn and decrease defect warp beam.
·Perfect pneumatic beam loading and doffing system, easy operation.
·W-shaped expansion reed controlled by motor and movable left and right, up and down avoid friction on fixed points.
·Intermittent blowing deice keep comb clean.
·World famous electric/pneumatic elements ensure perfect performance of the whole machine.
HFGA135 Warp Leasing Machine

Company Profile

Established in 1991 and located in Jiangyin Changshou Industrial Park, Jiangyin Huafang New Technology & Scientific Research Co., Ltd. is one of the leading textile machinery enterprises in China and also a High and New Technology Enterprise in Jiangsu Province. We are ISO9001:2000 system certified and fully under normalization management. Huafang undertakes National Torch Plan and national important new product development.

With the ideas of "Make Products, Create Technology, Develop Market and Create Value", Huafang keeps improving and developing.

With technological achievement in the textile machinery field and the latest technology around the world, Huafang has developed series products such as HF928 high speed sectional warping machines, ball warping machines, and compact spinning devices for modification ring frames, and has made contribution for pushing textile industry progressing.
