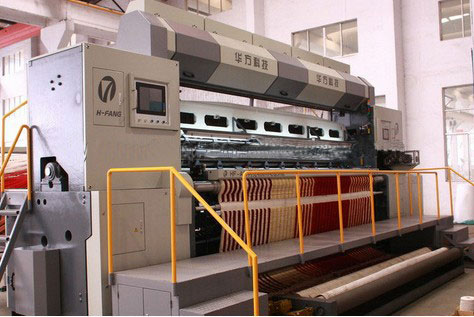

HF-A02 Felting machinery

HF-A02 Felting machinery is applied for carpet mills. We provide installation commissioning and training on site.

Product Details

Quick Details Parameter

Voltage: : 3X380V
Power(W): : 20KW
Certification: : ISO9001
Working Width: : 4000mm
Pile Color: : 12 Color
Speed: : 51 Weft/Min
Warp Density: : 7 Yarn/Inch
Pick Density: : 5-15 Weft/Inch
Yarn Ends: : 13440 Ends
Cone Pitch: : 130×150mm(Height×Length)
Spindle Layers: : 24 Layers


Main Characteristics:

1,Specify SCHINEIDER control system for whole machine, including main motor invertor, servomotor,man-machine touch screen. Pick density controlled by servomotor for convenient adjustment, no need to change gears. Servo motor for beating up to avoid gear abrasion. Man-machine touch screen provide rich information, convenient for operation.

2,Cutting knife and pile height are controlled by FESTO pneumatic components for easy maintenance.

3,New type jacquard device installation form can reduce plant height requirements, easy to transport.
HF-A02 Felting machinery

Company Profile

Established in 1991 and located in Jiangyin Changshou Industrial Park, Jiangyin Huafang New Technology & Scientific Research Co., Ltd. is one of the leading textile machinery enterprises in China and also a High and New Technology Enterprise in Jiangsu Province. We are ISO9001:2000 system certified and fully under normalization management. Huafang undertakes National Torch Plan and national important new product development.

With the ideas of "Make Products, Create Technology, Develop Market and Create Value", Huafang keeps improving and developing.

With technological achievement in the textile machinery field and the latest technology around the world, Huafang has developed series products such as HF928 high speed sectional warping machines, ball warping machines, and compact spinning devices for modification ring frames, and has made contribution for pushing textile industry progressing.
