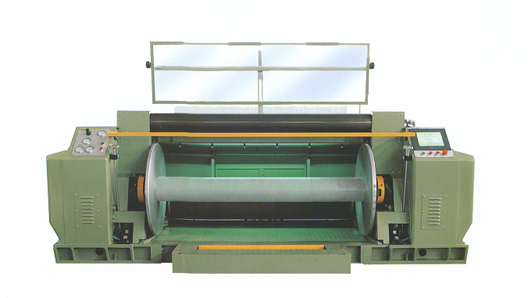

HFGA120 High Speed Direct Warping Machine

HFGA120 High Speed Direct Warping Machine absorbs foreign advanced technailogy and high speed high efficiency,high reliability.

Product Details

Quick Details Parameter

Warping width: : 1600、1800、2000mm
Operation display: : 10.4-inch
Motor power: : 11kw
Operation heigth: : 1008mm
Input voltage: : 380V ± 10%
Size of warp beam: : 800mm


Main Technical Characteristics
·FUJI inverter ensures wide speed scope and constant winding surface speed winding.
·Fully computerized controlled by MITSUBISHI PLC ensure safe and reliable automation control on beam loading/ doffing, beam clamping, pressurizing, machine starting/stopping etc.
·10.4-inch DIGITAL touch screen, easy operation, direct and informative, comprehensive trouble shooting and analyze.
·Perfect pneumatic system for controlling the beam lifting, clamping and pressurizing of press roller, and also provide pressure for the hydraulic brake system.
·Hydraulic disc brakes for warp beam and press roll, wear extent adjustable automatically. Pressure gauge available. Braking pressure can be adjusted separately. Pneumatic pressure source drive the oil motion.
·Side frames made of high quality cast iron is of good structure and high stiffness.
·Parallel pressurizing. The roller pressurizes parallelly along the fixed straight rail inclined 15°, no vibration and less noise when machine running at high speed, pressure adjustable steplessly and can be displayed on the pressure gauge, this ensure the optimal yarn build-up. The pressure roller swings away upon braking.
·Strong beam supporting mechanism and safety device ensure beam running at high speed not to drop in case of sudden power or gas failure.
·Expansion reed move left and right, up and down automatically. Intermittent blower available to keep comb clean.
·Pneumatic controlled windshield rotates to close or open automatically upon the machine start or stop.
·Safety guard rail guarantee safety of operation.
·Photoelectric encoder transmit signal of surface speed and winding length. Electromagnetic brake available for braking of the length counting roller.
·Electric contact or photoelectric broken end stop motion device is installed in front of creel, sensitive and reliable avoid the broken end being wound into the beam.
·Multiple types of creels and yarn package positions and cone pitches available for option.
·Multiple types of tensioners for option: 2-pillar tensioner, 3-pillar tensioner, ring type tensioner and magnetic suspension tensioner. (patent product)
HFGA120 High Speed Direct Warping Machine

Company Profile

Established in 1991 and located in Jiangyin Changshou Industrial Park, Jiangyin Huafang New Technology & Scientific Research Co., Ltd. is one of the leading textile machinery enterprises in China and also a High and New Technology Enterprise in Jiangsu Province. We are ISO9001:2000 system certified and fully under normalization management. Huafang undertakes National Torch Plan and national important new product development.

With the ideas of "Make Products, Create Technology, Develop Market and Create Value", Huafang keeps improving and developing.

With technological achievement in the textile machinery field and the latest technology around the world, Huafang has developed series products such as HF928 high speed sectional warping machines, ball warping machines, and compact spinning devices for modification ring frames, and has made contribution for pushing textile industry progressing.
