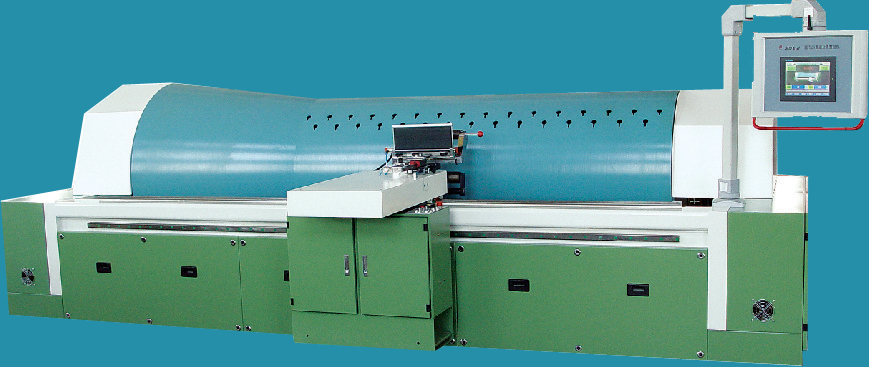

• HF928 High Speed Sectional Warping Machine

HF928 High Speed Sectional Warping Machine

HF928 High Speed Sectional Warping Machine is designed for flexible production arrangement and high quality weaving requirement.

Product Details

Quick Details Parameter

Working width: : 2300mm-3600mm
Beam diameter: : 800mm, 1000mm, 1100mm
Warping speed: : 10 – 800(m/min)
Beaming speed: : 0-160m/min
Braking distance: : ≤2.5m ( 500m/min )
Drum diameter: : 1000(mm)
Work station for beaming control: : 10.4-inch
Section traversing speed: : 0.001-9.999mm/r
Section positioning accuracy: : ≤0.01(mm)
Section traverse accuracy: : ≤0.01%
Section width: : 20mm – 360mm
Tension scope: : 0-600(N)


HF928 High speed sectional warping machine is designed for flexible production arrangement and high quality weaving requirement. It’s preparatory to weaving lines of worsted wool textile, natural silk fabric filament fabric, special screen cloth, yarn dyed fabric, towel fabric and industrial special fabric, can be completed with rapier, gripper, water-jet, air-jet and shuttleless looms with years’ of textile experiences and the latest mechanical and electric technologies, H-FANG can meet different requirement of warp yarn quality.
Main Characterstics
·High precision and liner guide rail and ball screw enjoys low friction,smooth action and high feeding precision.
·The axial direction displacement of warping table is controlled by a separate high precision servo motor,start point locating and section alignment can be set easliy by pressing one key.
·Fixed tapered warping drum made of high quality sheet steel,high precision dynamic balance adjusted carefully.
·With the increaing thickness of the yarn, warping table moves backwards in axial direction of warp drum automatically to ensure the constant space between spacing reed and yarn surfaceand avoid sections from diffusing.
·Warping head horizontal movement controlled by a separate servo motor.Enjoys fast response speed of guide bar displacement and high precision.
·Press roller can help to provide tight and event winding density and to get the best winding result.
·The feeding of section warping is set by twice automatic high precision checking and measurement,to get perfect winding shape.
·Spacing reed on the warping table inches in vertical direction to avoid friction on a fixed point.
·This machine is controlled by programmable controller,each unit is connected with the PLC with a cable CANOPEN.
·Machine can be connected with H-FANG’s workstation via.CDMA network in the swithboard.Maintenance person check equipment running condition via this network, thus any maintenance can be done quickly at low cost.(For option)
·Computer Integrated Manufacturing (CIM)availabel for option to count daily output,monthly output and working efficiency etc.information diaplayed can be printed in the office directly.It’s convenient for workshop management with network inside mill.
HF928 High Speed Sectional Warping Machine

Company Profile

Established in 1991 and located in Jiangyin Changshou Industrial Park, Jiangyin Huafang New Technology & Scientific Research Co., Ltd. is one of the leading textile machinery enterprises in China and also a High and New Technology Enterprise in Jiangsu Province. We are ISO9001:2000 system certified and fully under normalization management. Huafang undertakes National Torch Plan and national important new product development.

With the ideas of "Make Products, Create Technology, Develop Market and Create Value", Huafang keeps improving and developing.

With technological achievement in the textile machinery field and the latest technology around the world, Huafang has developed series products such as HF928 high speed sectional warping machines, ball warping machines, and compact spinning devices for modification ring frames, and has made contribution for pushing textile industry progressing.
