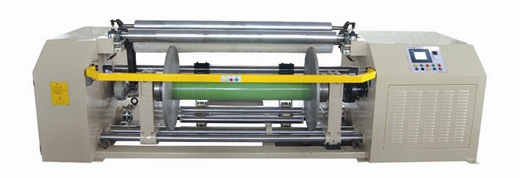

HFGA122 Fiberglass Warping Machine

HFGA122 Fiberglass Warping Machine, for leading fiberglass filament from bobbing creel to steel reed, winding the same to the warp beam after arranging the yarn evenly at the reed as preparatory to rebeaming, sizing or weaving process.

Product Details

Quick Details Parameter

Warping speed: : 10—160m/min
Working width: : 1280mm,2000mm
Beam diameter: : φ550mm、φ800mm
Brake distance: : ≤1m
Display: : 6-inch
Winding density: : 0.8-1.8g/cm3
Cone pitch: : 180mm x180mm or 200mm x 200mm
Yarn ends: : from 800 to 2400
Power of main motor: : 11KW
Voltage: : 380V±10%


Technical characteristics:
·MITSUBISHI PLC ensure safe and reliable automatic programs control.
·Winding at constant surface speed is ensured by inverter.
·6 inches touch screen, easy operation and it can also display huge information such as surface speed, length and cloth length, the outputs of a shift and a month as well as the location of malfunctions.
·Yarn tension controlled by magnetic powder brake, pressure adjustable.
·Press roller effect on the warp beam to ensure even and ideal winding density.
·KOYO encoder available for length-counting and surface measuring.
·Loading and doffing of beam controlled by cylinder.
·Steel reeds’ movement controlled by motor.
·Warp beam driven by main motor through the gearbox.
·Static eliminator available
·Guard rail, safety infrared raster guarantee safety of operation
·Photoelectric broken end stop motion device installed in front of the bobbin creel, sensitive and reliable.
HFGA122 Fiberglass Warping Machine

Company Profile

Established in 1991 and located in Jiangyin Changshou Industrial Park, Jiangyin Huafang New Technology & Scientific Research Co., Ltd. is one of the leading textile machinery enterprises in China and also a High and New Technology Enterprise in Jiangsu Province. We are ISO9001:2000 system certified and fully under normalization management. Huafang undertakes National Torch Plan and national important new product development.

With the ideas of "Make Products, Create Technology, Develop Market and Create Value", Huafang keeps improving and developing.

With technological achievement in the textile machinery field and the latest technology around the world, Huafang has developed series products such as HF928 high speed sectional warping machines, ball warping machines, and compact spinning devices for modification ring frames, and has made contribution for pushing textile industry progressing.
