Quick Details
Description
- Place of Origin: Henan, China (Mainland)
- Brand Name: Runner
- Model Number: zw32-12-001
- Type: Vacuum
- Poles Number: 3
- circuit breakers types: spring and permanent magnet
- circuit breakers voltage: 12KV
- circuit breakers current: 630A 1250A
- circuit breakers rated frenquency: 50HZ
- vacuum circuit breakers opening speed: 1.2±0.2ms
- circuit breakers closing speed: 0.6±0.2ms
- middle voltage circuit breakers weight: 120kg
- circuit breakers altitude: less than 1000m
- circuit breakers working temperature: - 40℃-- 50℃

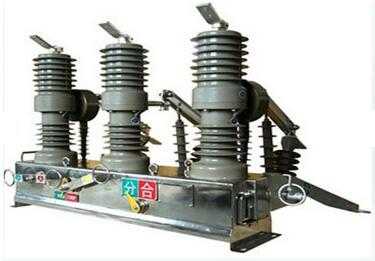

Middle Voltage Vacuum Circuit Breakers
1.Founded in 2002, registered capital is 30.1 million RMB;
2.Company covers 100000 square meters, more than 300 staffs;
3.Professional R&D team, and 5 advanced production lines, annual sales value 120 millions .
4.We have another 2 subcompanies, offices across the country, wonderful agent sales network;
5.Products are exported to more than 20 countries around the world.
Middle Voltage Vacuum Circuit Breakers Advantage:
Vacuum circuit breakers insulation test: Main electricity loop insulation is stable and reliable;
Circuit breakers Mechanical property and environmental testing: mechanical property is stable and reliable;
Vacuum circuit breakers Temperature rise test: Vacuum interrupter with ultra-low resistance, contacting resistance is low;
Middle voltage circuit breakersTesting for Turning on or off and opening or closing on rated short circuit :
Circuit breakers High vacuum breaking ability is great, insulation recovery is fast, breaker finished short-circuit current test for 30 times;
Circuit breakers Testing for short-time withstand current and peak withstand current:
Vacuum circuit breakers test for 4 seconds withstand current and short-time peak withstand current, power receiving ability on main loop is great;
Testing for life : 30000 times finished on State new standard M2 grade.
Middle Voltage Vacuum Circuit Breakers Manufacturing Standards:
IEC62271-100-2006
IEC62271-1
GB1984-2003
GB/T11022-1999
DL/T402-2007
DL-T593-2006
JB/T3855-2008
Middle Voltage Vacuum Circuit Breakers Technical Parameters:
|
No
|
Items
|
Unit
|
Number
|
|
1
|
Rated voltage
|
KV
|
12
|
|
2
|
Rated current
|
A
|
630 or 1250
|
|
3
|
Rated frequency
|
Hz
|
50
|
|
4
|
Power frequency resisting voltage(1min)
|
KV
|
42
|
|
5
|
Withstand current(peak) for thunder
|
KV
|
75
|
|
6
|
Rated short-circuit current for turning on or off
|
KA
|
16/20/25
|
|
7
|
Rated short-circuit current for opening or closing (peak number)
|
KA
|
50
|
|
8
|
Rated peak withstand current
|
KA
|
50
|
|
9
|
4s short-time withstand current
|
KA
|
20
|
|
10
|
Rated operation cycle
|
|
s-0.1s-ms-6s-ms-6sms-60s recovery
|
|
11
|
Number of times for rated short-circuit current on or off
|
times
|
30
|
|
12
|
Life
|
times
|
30000
|
|
13
|
Permanent-magnet device control voltage
|
V
|
DC 220
|
We are a professional high-tech enterprise in Zhengzhou city, China, engaged in the R&D, production and sales of intelligent electric power distribution products, electric metering products & energy monitoring products. Founded in 2002, our registered capital is 30.1 million RMB. Our company covers an area of 100,000 square meters. With more than 500 staff members, professional R&D teams and 5 advanced production lines, the annual sales value reaches 120 million.
Our main products are pole-mounted circuit breaker, outdoor high-voltage dropout fuse / fuse cutout, electric energy metering box, cable branch box / cabinet, DTU, FTU, battery sensor, outdoor high-voltage isolating switch, industry video endoscope, borescope for inspection and tablet PC for entertainment. Our products are popular in China and overseas markets. Our company has been awarded AAA credit and passed ISO9001 quality management system certification, ISO14001 environmental management system certification & OHSAS18001 occupational health and safety management system certification.
