- Place of Origin: Henan, China (Mainland)
- Brand Name: Runner
- Model Number: zw32-12-003
- Type: Vacuum
- Poles Number: 3

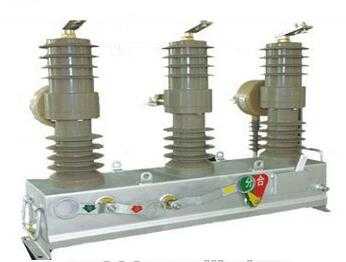

- Product name: outdoor intelligent electric vacuum type circuit breaker
- electric disconnector equipment: spring and permanent magnet
- disconnector equipment voltage: 12KV
- disconnector equipment current: 630A 1250A
- disconnector rated frenquency: 50HZ
- disconnector opening speed: 1.2±0.2ms
- disconnector equipment closing speed: 0.6±0.2ms
- disconnector equipment weight: 120kg
- disconnector equipment altitude: less than 1000m
- disconnector working temperature: - 40℃-- 50℃
Outdoor Intelligent Electric Vacuum Type Circuit Breaker Advantage:
electric disconnector equipment insulation test: Main electricity loop insulation is stable and reliable;
Mechanical property and environmental testing: mechanical property is stable and reliable;
Temperature rise test: Vacuum interrupter with ultra-low resistance, contacting resistance is low;
Testing for Turning on or off and opening or closing on rated short circuit :
High vacuum breaking ability is great, insulation recovery is fast, breaker finished short-circuit current test for 30 times;
electric disconnector equipment testing for short-time withstand current and peak withstand current:
electric disconnector equipment test for 4 seconds withstand current and short-time peak withstand current, power receiving ability on main loop is great.
electric disconnector equipment Testing for life : 30000 times finished on State new standard M2 grade.
Outdoor Intelligent Electric Vacuum Type Circuit Breaker Manufacturing Standards:
IEC62271-100-2006
IEC62271-1
GB1984-2003
GB/T11022-1999
DL/T402-2007
DL-T593-2006
JB/T3855-2008
Outdoor Intelligent Electric Vacuum Type Circuit Breaker Technical Parameters:
|
No
|
Items
|
Unit
|
Number
|
|
1
|
Rated voltage
|
KV
|
12
|
|
2
|
Rated current
|
A
|
630 or 1250
|
|
3
|
Rated frequency
|
Hz
|
50
|
|
4
|
Power frequency resisting voltage(1min)
|
KV
|
42
|
|
5
|
Withstand current(peak) for thunder
|
KV
|
75
|
|
6
|
Rated short-circuit current for turning on or off
|
KA
|
16/20/25
|
|
7
|
Rated short-circuit current for opening or closing (peak number)
|
KA
|
50
|
|
8
|
Rated peak withstand current
|
KA
|
50
|
|
9
|
4s short-time withstand current
|
KA
|
20
|
|
10
|
Rated operation cycle
|
|
s-0.1s-ms-6s-ms-6sms-60s recovery
|
|
11
|
Number of times for rated short-circuit current on or off
|
times
|
30
|
|
12
|
Life
|
times
|
30000
|
|
13
|
Permanent-magnet device control voltage
|
V
|
DC 220
|
Mechanical Parameters
|
No
|
Parameter name
|
Unit
|
Data
|
|
01
|
Contacts opening distance
|
mm
|
9±1
|
|
02
|
Contacts over travel
|
mm
|
2.5±0.5
|
|
03
|
Opening speed
|
m/s
|
1.2±0.2
|
|
04
|
Closing speed
|
m/s
|
0.6±0.2
|
|
05
|
Contacts closing bounce time
|
ms
|
≤2
|
|
06
|
Phase-to-phase center distance
|
mm
|
340±1.5
|
|
07
|
3-phase open/close non-synchronism
|
ms
|
≤2
|
|
08
|
Loop resistance each phase
|
μΩ
|
<120(with isolation), <80 without isolation)
|
|
09
|
Closing time
|
ms
|
25 -- 60
|
|
10
|
Opening time
|
ms
|
20 -- 45
|
|
11
|
Weight
|
kg
|
About 120
|
