Quick Details
Description
- Condition: New
- Mixer Type: Paddle
- Product Type: mixing
- Application: Powder
- Additional Capabilities: Drying
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: Sinbak
- Model Number: SRLZ-200/500
- Max. Loading Capacity: 500L
- Voltage: 380V/50Hz
- Power(W): 45KW
- Dimension(L*W*H): 2570*2600*2350mm
- Certification: CE Certificate
- Warranty: 1 Year
- After-sales Service Provided: Engineers available to service machinery overseas
- Model: SRLZ-200/500
- Heating volum(L): 200
- Cooling volum(L): 500
- One time feeding quantity(KG): 60-70
- Mixing time(min): 8-12
- Output(KG/H): 300
- Blade material: Stainless steel
- Inner wall thickness(mm): 5
- Outer wall thickness(mm): 5
- Pot base thickness(mm): 6
|
Model
(Heat/cold mixing)
|
SRLZ
200/500
|
SRLZ
300/600
|
SRLZ
500/1000
|
SRLW
800/2500
|
SRLW
1000/3000
|
|
Total cubage(L)
|
200/500
|
300/600
|
500/1000
|
800/2500
|
1000/3000
|
|
Effective cubage(L)
|
150/375
|
225/450
|
375/750
|
600/1875
|
750/2250
|
|
Mixing speed(rpm)
|
465/930/100
|
465/930/100
|
430/860/80
|
370/740/60
|
370/740/60
|
|
Mixing time(min)
|
8-12
|
8-12
|
8-12
|
8-12
|
8-12
|
|
Motor power (Kw)
|
30/42/7.5
|
40/55/7.5
|
55/75/15
|
83/110/30
|
110/160/37
|
|
Output(Kg/h)
|
300-450
|
500-550
|
600-750
|
1000-1250
|
1500-1750
|

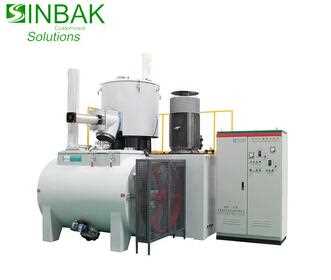

SINBAK Powder Mixing Mahcine
SRL-Z seires mixer unit is applicable for mixing, colouring and drying of various resin such as plyethylene, polypropylene etc, and in the craft of engineering plastics such as ABS, polycarbonate etc brfore forming and processing as well as in the mixing of phenotic resin, the unit combines heat and cold mixing craft together, the material after heat mixing can be got into cool mixer for cooling automatically, exhausts remaining gases and prevent agglomeration
Main Features
1. The unit is developed by importing and absorbing advanced foreign technology.By adopting PLC control, it features high automatic level, good mixing result.Heat mixing has such functions as self-friction,and electric heating.
2. The vane has passed the test of dynamic and static equilibrium.The cover adopts double concave-convex seal.
3. Main axis seal adopts special tech of our company,also equipped with pulse dust catching device.
4. Cooling mixer absorbed slowdown tech from overseas,adopts direct slowdown device,overcomes the deadly weakness causing by use of retarder,that makes it running smoothy even more.
5. This machine has come up to the same kind of product level in the world.That is an ideal equipment for producing plates,pipes and special-shaped materials etc.
