Quick Details
Description
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: SINBAK
- Model Number: PVC-180/240/600
- After-sales Service Provided: Engineers available to service machinery overseas
- Raw material: PVC/WPC
- Extruder Model: SJSZ-51/105
- Extruder Power: 18.5/22KW
- Vacuum Pump Power: 4KW*3
- Water Pump Power: 4KW
- Haul-off Motor Power: 2.2KW*2
- Haul-off Speed: 0-10m/min
- Cutter Motor Power: 1.5KW
- Maximum Capacity: 150~200KG/H
- VOLTAGE: 380V 50Hz 3Phase (Customized)
PVC Raw material+additive→Mixing Unit→Auto Feeder→Conical Twin-screw Extruder→-Moulds→Vacuum Calibration Tank→Haul-off&Cutting Machine→Stacker
SINBAK PVC/UPVC Profile Sliding Window Extrusion Machine/PVC Sliding Window and Door Production Line/PVC Profiles Making Machine
1.SINBAK Hot Selling PVC/PP/PE Doors Profile Production Line with Twin Screw Extruder Sjsz51/105 is mainly used for the PVC corners, small boards and conduits extrusion. also can be used to produce ABS,PP,PS,PC profiles making after changing the extruders.
2.SINBAK Hot Selling PVC/PP/PE Doors Profile Production Line with Twin Screw Extruder Sjsz51/105 Screw adopts oil cooling system. Barrel uses a special air cooling system .Plastics mixing uniformity, high output, wide application range, high reliability. Gear box, distribution box specially designed reinforced thrust bearings, drive torque and long service life.
3.The major part mainly adopts imported components and has a number of fault alarm function, simple operation, easy maintenance,etc.
4.The profile cutting also purchase the PLC control system, ensured the length tolerence in control.
|
Modle
|
Product Range
|
Extrusion Output（kg/hr）
|
Line Speed（m/mim）
|
KW
|
Lenght（m）
|
|
PVC-55
|
150*80
|
150
|
0~10
|
80
|
15~20
|
|
PVC-45
|
150*80
|
100
|
0~10
|
60
|
15~20
|
|
PVC-45
|
150*80
|
60
|
0~10
|
40
|
12~20
|
|
PVC-80
|
240*100
|
360
|
0~10
|
120
|
24~28
|
|
PVC-65
|
240*100
|
240
|
0~10
|
100
|
22~25
|
|
PVC-55
|
150*80
|
150
|
0~10
|
80
|
20~24
|

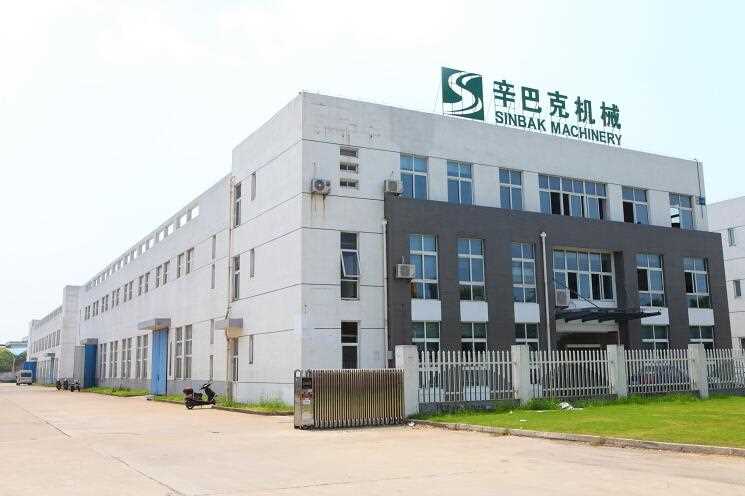

Zhangjiagang Sinbak machinery is a modern factory,which engaged in the plastic extrusion machine and recycling machine's reseaching,manufacturing and saling. Our professional reseach teams,sales teams,rich experience and processing equipment will offer customers high quality machines and perfect after sales services.
Products and Service: Our major machine including: High-efficient extrusion line for PVC/PP/PE/PPR pipe,profiles,sheet,board; High speed mixer and mixing unit; PVC/Wood-plastics Automatic Mixing Measurement System; PVC Wave/Glazed Tile Extrusion Line; All kinds of auxiliary machine such as pipe belling machine,winding machine,crusher,pulverizer,shredder; We will offer detail solutions according to different customers detail conditions and the whole set of solution from extrusion to recycling turn key projects. Our machines are highly praised by our customers fro perfect perfomance,Quick service,Advantage technology.
