Quick Details
Description
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: THIM
- Model Number: FPQ-110/8
- Type: Insulator
- Material: Composite Polymer
- Application: High Voltage
- Rated Voltage: 110KV
- Tensile Strength: 8KN
- key words: post 66kv insulators

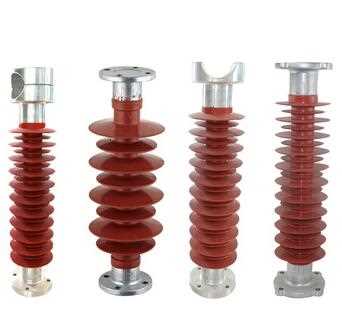

- Product name: outdoor waterproof Polymer Composite post 66kv insulator
- Color: Customized
- Size: Customers Request
- Feature: High Temperature Resistance
Our main products are as follows:Our main products are as follows:
1.10kv -750kv silicone rubber insulator
2.Diam.5-180mm Insulator core rod(epoxy resin rod)
3.Many kinds of insulator fittings such as ball,socket,Tongue,Clevis,Flange and so on.
4.Silicone rubber
|
Type
|
No.
Of
Sheds
|
“X”
Length
inches
(mm)
|
Diameter
Inches
(mm)
|
Leakage
Distance
Inches
(mm)
|
Dry
Arc
Distance
inches
(mm)
|
Lighting withstan voltage
|
Wet power frequency voltage
|
SML
Specified Mechanical Load(kN)
|
Top end fitting dianeter
|
Bottom end fitting dianeter
|
|
FZSW-10/4.0
|
5
|
250
|
110
|
85
|
400
|
160
|
95
|
40
|
4.0
|
76
|
76
|
|
FZSW-12/4.0
|
4
|
254
|
120
|
90
|
400
|
145
|
95
|
40
|
4.0
|
76
|
76
|
|
FZSW-20/4.0
|
6
|
315
|
137
|
110
|
580
|
215
|
145
|
50
|
4.0
|
76
|
76
|
|
FZSW-24/4.0
|
7
|
370
|
120
|
90
|
580
|
260
|
145
|
50
|
4.0
|
76
|
76
|
|
FZSW-36/12.0
|
19
|
550
|
140
|
110
|
1260
|
404
|
230
|
95
|
12.0
|
140
|
140
|
|
FZSW-40.5/4.0
|
15
|
560
|
123
|
80
|
1050
|
450
|
230
|
95
|
4.0
|
76
|
76
|
|
FZSW-66/10.0
|
21
|
905
|
166
|
136
|
1900
|
766
|
410
|
185
|
10.0
|
127
|
127
|
|
FZSW-72.5/6.0
|
15
|
890
|
170
|
140
|
1900
|
742
|
410
|
185
|
6.0
|
127
|
127
|
|
FZSW-110/5.0
|
30
|
1220
|
166
|
136
|
3150
|
1081
|
550
|
230
|
5.0
|
127
|
178
|
|
FZSW-220/2.5
|
57
|
2310
|
187
|
157
|
6300
|
2100
|
950
|
395
|
2.5
|
150
|
150
|
|
FZSW-252/4.0
|
55
|
2300
|
196
|
166
|
6300
|
2100
|
950
|
395
|
4.0
|
127
|
200
|
Taizhou Huadong Insulated Material Co.,Ltd.(THIM) is an ISO-9001:2000 certified company,THIM is the largest manufacturer and supplier of composite lnsulators in china. The company mainly specializes in the research & development,production and sales of 10KV-500KV composite insulators. Has high R & D strength,high professional team for pollution and lightning proof.
The company has advanced production technology and equipment, perfect inspection technic and apparatus, a batch of specialist of new material current. Composite lnsulator products has obtained welcome of wide customers of power system.
The high-voltage composite insulators we produce have passed Two-section ldentification of national power company and national machinery bureau organizing and was included in the the main equipment product that is needed in building and transformating the national urban and rural areas power net and manufacturer recommend catalogby national SETC economic and trade committee.
THIM has become a market leader through creative technologies, has ventured into Composite lnsulators,as a result of its commitment to excellence. Composite lnsulators are well used across the global as a significant technology breakthrough. The company has ambitious plans to manufacture and develop value added products is the power sector & railways, featuring exclusive characteristics that exceed all the present requirements of the utility business around the world at the most competitive pricing.
