outdoor waterproof Polymer Composite post 66kv insulator

high transmission Composite Polymer electrical insulator pin

132KV Polymer Line Post Composite insulator manufacturer

FS3-11/5 High Voltage Composite cross-arm Polymer Insulator

35KV Composite Polymer Suspension long rod insulator

customized Safe and reliable operation Composite strain insulator

Sample: Sample Avaliable; Color: Customized; Feature: High antifouling property,good aging resistance performance;

Send Inquiry Add to My Favorites

Product Details

Quick Details

Description

Place of Origin: Jiangsu, China (Mainland)
Brand Name: THIM
Model Number: FXB1-35/70CT
Type: Insulator
Material: Porcelain
Application: High Voltage
Rated Voltage: 35KV
Tensile Strength: 70KN
key words: strain insulator

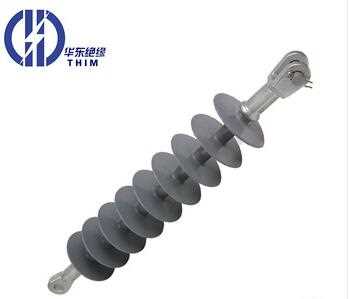

Product name: customized Safe and reliable operation Composite strain insulator
Sample: Sample Avaliable
Color: Customized
Feature: High antifouling property,good aging resistance performance

This kind of product is special for badly polluted areas, high mechanical tensile load, long

span and compact line. And has features of light weight, small size, unbreakable, anti-bend,

high strength for anti-twist and strong explosion protection.

Our main products are as follows:
1.10kv -750kv silicone rubber insulator
2.Diam.5-180mm Insulator core rod(epoxy resin rod)
3.Many kinds of insulator fittings such as ball,socket,Tongue,Clevis,Flange and so on.
4.Silicone rubber

Type	System nominal voltage (KV) Usys	Rated mechanical bending	Connecting structural coupling	Structural height H, mm spacing	Mini stem arc distanceh, mm arc.dist	Mini nominal creep age distancemm min creep.Path	Lightning full-ware impulse tolerance voltage (≥KV) Uimp wts	Frequency tolerance (≥KV) Uswit wst
FXBW 4 -10/70	10kv	70KN	16(R)	400±10	200	480	115	45
FXBW 4 -10/70	10kv	70KN	16(R)	430±10	220	460	85	40
FXBW 4 -11/70	11kv	70KN	16(R)	360±15	185	390	95	38/45
FXBW 4 -24/70	24kv	70KN	16(R)	450±15	270	740	125	70
FXBW 4 -24/100	24kv	100KN	16(R)	570±15	370	850	185	95
FXBW 4 -33/70	33kv	70KN	16(R)	590±15	410	1180	230	90/120
FXBW 4 -35/70	35kv	70KN	16(R)	650±15	450	810	230	96
FXBW 4 -35/70	35kv	70KN	16(R)	610±15	450	810	230	96
FXBW 4 -66/70	66kv	70KN	16(R)	925±15	730	2000	410	185
FXBW 4 -66/70	66kv	70KN	16(R)	870±30	680	1450	400	180(w)
FXBW 4 -110/70	110kv	70KN	16(R)	1240±30	1090	3400	550	230(w)
FXBW 4 -110/70	110kv	70KN	16(R)	1180±15	1000	3150	550	230(w)
FXBW 4 -110/100	110kv	100KN	16(R)	1180±15	1000	2520	550	230(w)
FXBW 4 -110/120	110kv	120KN	16(R)	1330±30	1140	3700	650	275(w)
FXBW 4 -132/70	132kv	70KN	16(R)	1540±40	1400	4500	650	325(w)
FXBW 4 -220/120	220kv	120KN	16(R)	2350±40	2120	7500	1100	480(w)
FXBW 4 -220/120	220kv	120KN	16(R)	2150±30	1900	6300	1000	395(w)
FXBW 4 -220/160	220kv	160KN	16(R)	2710±40	2120	7500	1100	480(w)

customized Safe and reliable operation Composite strain insulator

Company Profile

Taizhou Huadong Insulated Material Co.,Ltd.(THIM) is an ISO-9001:2000 certified company,THIM is the largest manufacturer and supplier of composite lnsulators in china. The company mainly specializes in the research & development,production and sales of 10KV-500KV composite insulators. Has high R & D strength,high professional team for pollution and lightning proof.
The company has advanced production technology and equipment, perfect inspection technic and apparatus, a batch of specialist of new material current. Composite lnsulator products has obtained welcome of wide customers of power system.
The high-voltage composite insulators we produce have passed Two-section ldentification of national power company and national machinery bureau organizing and was included in the the main equipment product that is needed in building and transformating the national urban and rural areas power net and manufacturer recommend catalogby national SETC economic and trade committee.
THIM has become a market leader through creative technologies, has ventured into Composite lnsulators,as a result of its commitment to excellence. Composite lnsulators are well used across the global as a significant technology breakthrough. The company has ambitious plans to manufacture and develop value added products is the power sector & railways, featuring exclusive characteristics that exceed all the present requirements of the utility business around the world at the most competitive pricing.
