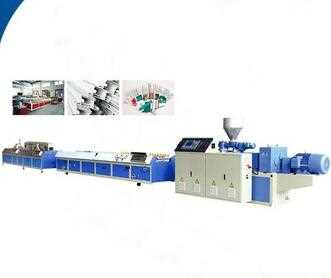

• most economical high quality pvc window and door frame making machine

most economical high quality pvc window and door frame making machine

Board Extruder: PVC Board; Processing Purpose: Profile; Product Type: PVC Profile; Processing Type: Extruding Machine;

Product Details

Quick Details

Description

  • Condition: New
  • Application: Profile
  • Plastic Processed: PVC
  • Screw Design: Double-screw
  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: XINXING
  • Model Number: YF Series
  • Voltage: 380V
  • Certification: CE
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Certificate: CE
  • Colour: Optional
  • Board Extruder: PVC Board
  • Processing Purpose: Profile
  • Product Type: PVC Profile
  • Processing Type: Extruding Machine



Type

YF-180

YF-240

YF-700

YF-1000

Section bar width(mm)

180

240

700

1000

Length of the vacuum shaping platform

2500

6000

6000

8000

Degree of vacuum(Map)

-0.08~-0.09

-0.08~-0.09

-0.08~-0.09

-0.08~-0.09

Traction speed(m/min)

0.5~0.4

0.5~0.4

0.3~3

0.2~1.0

Cutting saw dia(mm)

400

450

300

320

Total power(kw)

42

98

180

250

Length of line

20

25

35

45

most economical high quality pvc window and door frame making machine

Company Profile

Established in 1991, Shanghai Xinxing Twin Screw Machinery Co., Ltd. is a professional manufacturer in plastic machinery field. With strong capabilities in R&D, design and production, we are specializing in producing a wide range of plastic machinery and spare parts.

Our technology in producing barrels and screws, the heart of extruders, is taking a leading place in China for continually absorbing international advanced technologies. Our extruder lines are popular in China and well acceptable by customers around the world. Meanwhile, our Xinxing brand plastic machines are also exported to such regions as Southeast Asia, America and West Europe.

With more than 10 years' experience in machine manufacturing, we have acquired advanced technologies and developed SJSZ-45 (50, 55, 60, 65, 80, 92) series of conical twin screw extruders. This series of extruders feature excellent compounding ability, high output, stable operation, wide application range, long service life and PVC powder direct processing. These products also can be used in the production of pipes, profiles and sheets with suitable die and accessory machines.

We aim at providing high quality, preferential prices and best services for our customers. Now, we are constantly looking for opportunities to build new business relationships with companies from around the world. If you are interested in any of our products, please feel free to contact us for more information. We will do our utmost to supply you with first-class products and services.
