Quick Details
Description
- Condition: New
- Application: Plates
- Plastic Processed: WPC
- Screw Design: Double-screw
- Automatic Grade: automatic
- Place of Origin: Shanghai, China (Mainland)
- Brand Name: Xinxing
- Model Number: 900
- Voltage: 380V/50HZ
- Power(W): 336KW
- Dimension(L*W*H): 45000/2100/2800mm
- Certification: CE/ISO/SGS
- After-sales Service Provided: Engineers available to service machinery overseas
- Material:: wood 25% pvc 75%
- Screw type:: conical twin screw
- Output capacity:: 600kg/h
- Main motor:: DC/110KW
- Traction machine:: 6 caterpillars traction
- Cutting machine:: PLC controlled horizontal cutting
Specifications
1. Hollow pvc wood door board
2. High capacity conical twin screw
3. Six caterpillars traction
4. Horizontal cutting by PLC
Detailed information:
Suitable for raw material: PVC
Suitable for door size 900x40mm
Center height of line: 1200mm
Water circulation volume for cooling: 25 m3/h (≤20°C,≥0.3Mpa)
Pool volume: 35m3
Compressed air capacity: 3.0 m3/min (>0.5MPa)
Driving power supply: 3 phase 380V (±10%) 50Hz
Assembly total power: 336Kw
Production line overall dimension: 45000×2100×2800mm
Constitute of the whole line
|
Ref.#
|
Equipment list
|
Qty
|
|
1.
|
High speed mixing unit model DYHL800/2000
|
1pc
|
|
2.
|
Conical twin screw granulation unit model SJSZ-80/156
|
1pc
|
|
3.
|

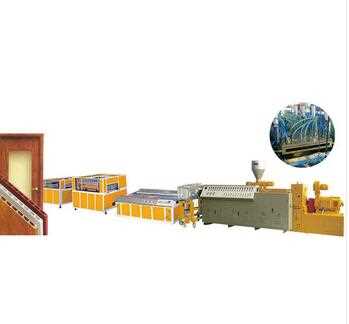

Hollow pvc wood door sheet extrusion line
|
1pc
|
|
3.1
|
Conical twin screw extruder model SJSZ92/188
|
1pc
|
|
3.2
|
Mold model LXG900
|
1pc
|
|
3.3
|
Vacuum forming table model DX900
|
1pc
|
|
3.4
|
Traction machine model QG900
|
1pc
|
|
3.5
|
Cutting machine model QG900
|
1pc
|
|
3.6
|
Turnover stacker model QZ900
|
1pc
|
|
4.
|
Hollow pvc wood door frame extrusion line
|
1pc
|
|
4.1
|
Conical twin screw extruder model SJSZ65/132
|
1pc
|
|
4.2
|
Mold for 260 door frame
|
1pc
|
|
4.3
|
Vacuum forming table model DY300
|
1pc
|
|
4.4
|
Traction & cutting machine model QYQG300
|
1pc
|
|
4.5
|
Turnover stacker model FG300
|
1pc
|
Established in 1991, Shanghai Xinxing Twin Screw Machinery Co., Ltd. is a professional manufacturer in plastic machinery field. With strong capabilities in R&D, design and production, we are specializing in producing a wide range of plastic machinery and spare parts.
Our technology in producing barrels and screws, the heart of extruders, is taking a leading place in China for continually absorbing international advanced technologies. Our extruder lines are popular in China and well acceptable by customers around the world. Meanwhile, our Xinxing brand plastic machines are also exported to such regions as Southeast Asia, America and West Europe.
With more than 10 years' experience in machine manufacturing, we have acquired advanced technologies and developed SJSZ-45 (50, 55, 60, 65, 80, 92) series of conical twin screw extruders. This series of extruders feature excellent compounding ability, high output, stable operation, wide application range, long service life and PVC powder direct processing. These products also can be used in the production of pipes, profiles and sheets with suitable die and accessory machines.
We aim at providing high quality, preferential prices and best services for our customers. Now, we are constantly looking for opportunities to build new business relationships with companies from around the world. If you are interested in any of our products, please feel free to contact us for more information. We will do our utmost to supply you with first-class products and services.
