Quick Details
Description
- Condition: New
- CNC or Not: Normal
- Power Source: Hydraulic
- Place of Origin: Anhui, China (Mainland)
- Brand Name: BEILIN
- Model Number: YTD32-315
- Voltage: 110V/220V/380V
- Power(W): 22KW
- Weight: 7650KGS
- Dimension(L*W*H): 2550X1600X3350 mm
- Certification: CE, ISO
- Warranty: 2 year
- After-sales Service Provided: Engineers available to service machinery overseas
- Rated pressure: 3150KN
- maximum pressure of liquid: 25Mpa
- Knock-out pressure: 630KN
- stroke of slid: 800mm
- Stroke of knock-out: 300mm
- Daylight: 1250mm
- Motor power: 22KW

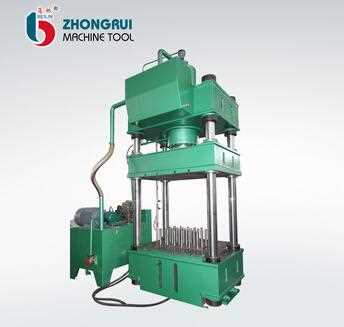

1.YTD32 Series four column hydraulic pressis one of the new generations of plate process. The four-column three-beam and four-pole structure are designed for large operating spaces.
The four-column hydraulic pressis suitable for automatic operations forming, punching, bending, straightening and multi-press assemblies to form automatic production line.
2.It has fully enclosed drive, which is easy accessible to maintenance, eliminating exposed over hanging parts, slide and bolster tables with T-slots.
3. Using a variable flow piston pump offers high pressure resistance, high velocity, durability as well as low noise.
4. Hydraulic pipe system of the four-column hydraulic press uses integrated circuits – manifold block fits inside the press to reduce piping and oil leaks, easy to maintain, simple and safe. Hydraulic system is from Bosch, Germany.
5.The hydraulic press machinehas a protective fence and a safety interlock to ensure that the operation runs safely. It also has a movable single-hand pedal switch, thus it is easy to operate.
6.Front side is covered with safety switches, back light safety guards (Category-4), foot pedal, all of which conform to the standards of CE regulation.
7.Guiding device: It adopts four cylindrical locations guiding to ensure the steady precision, and it’s of easy access to test and maintain.
8.The four column hydraulic presscan beoperated with automatic one cycle design; two hand push button design for simple and safe operation. Thefour column hydraulic presscould also realize three-operation mode: adjustment, manual and semi-automatic.
9.PLC press control is flexible and safe. Adjustable proximity switches allows stroke adjustments in seconds.
All our electrical, hydraulic and mechanical parts are standard in the industry and available throughout North America and Europe.
The Machine is with both hands button and foot switch control: anti-tie down, non-repeat controls with ring guards; conforms to OSHA.
Dual control you can select to use:
a) Moveable pedestal height for comfort and ease of operation c/w dual electric palm buttons & extra emergency stop; b) Movable single-hand pedal switch.
Anhui Zhongrui Machine Tool Manufacturing Co., Ltd. is one of the leading manufacturers of metal sheet forming machines and equipment. Our main products include WF67Y and WF67K series press brakes, CNC electro-hydraulic press brakes, QC12Y and QC12K plate shear machines, Q11 Y type CNC electro-hydraulic servo gated shears, Q11 mechanical plate shears, W11 type three/four-rolls rolling machines, YTD32 series 4-column hydraulic presses, J23 series mechanical ironworkers, ZRM type edge milling machines, ZRPM turret punching machines and different moulds & blades used on machines.
Zhongrui was founded in 2002 and is located in Bowang Town which is only 20km away from Nanjing Lukou International Airport. With more than 20,000sqm plants, 180 skilled staff members and an efficient R&D team, our monthly output can reach more than 100 units.
As a direct manufacturer and exporter, Zhongrui can provide timely delivery, reliable quality products and competitive prices for customers. Under the ISO9001 Quality Management System, we have established business relationships with many domestic and overseas customers and won high appraise among them.
We would like to supply our fast communication and service for your kind inquiries on our machines. We always welcome relative business partners and companies to be our distributors in your market to realize mutual benefits.
Anhui Zhongrui Machine Tool Manufacturing Co., Ltd. is also one of the leading suppliers of metal fabricating equipment, the main products include:
- Hydraulic Press Brakes
- Manual and CNC
- Hydraulic & Mechanical Shears
- Manual and CNC
- Power press from 40T-500T
- Plate bending rolls (2, 3 and 4 rolls)
- Angel rolling machine
- Tube Bender
- Ironworker
- American and European-style Press Brake Tooling
- Shear Knives
