Quick Details
Description
- Condition: New
- Place of Origin: Anhui, China (Mainland)
- Brand Name: BEILIN

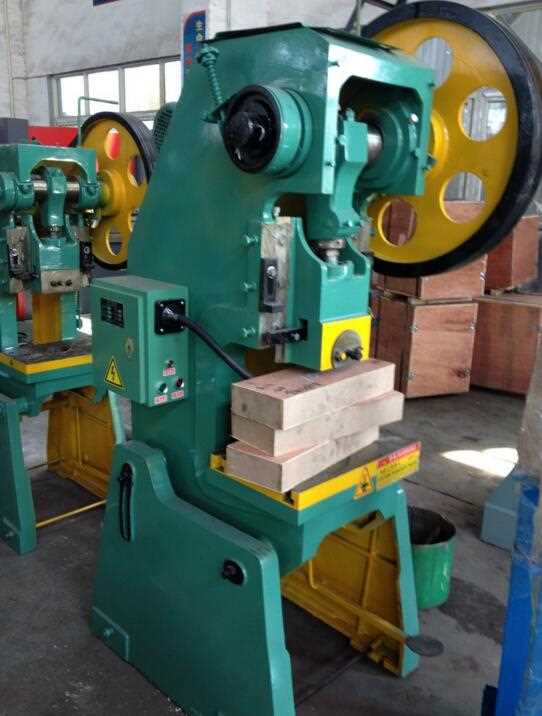

- Model Number: J21-100t
- Machine Type: power press
- Raw Material: steel
- Material / Metal Processed: Carbon Steel
- Power: mechanical
- Automation: Automatic
- Extra Services: Machining
- Certification: CE
- After-sales Service Provided: Engineers available to service machinery overseas
- Nominal Pressure: 1000KN
- Nominal Pressure Stroke: 9mm
- Slipper Strole: 130mm
- Max closing height: 380mm
- Worktable Sze: F-B 590mm L-R 890mm
- Diameter of blank-holding hole: F-B 240mm L-R360mm diameter 200mm
- Size of die handle bore: diameter 60mm depth 80mm
- Pole Distance: 300mm
- Body tilting angle: /
- Motor Power: 7.5kw
Machine Structural Feature:
|
1.C-Type Steel- welded frame, high rigidity and less deformation Compact,wide body frame eliminating vibration for improved ide life
and machine.
|
|
2.Rigid construction guarantees exact die mating,Six-side long rectangle guides of the slide with high moving
precision and high accuracy, extending the service life of the die.
|
|
3.Highly advanced, rigidly supported gears, operate in oil bath without any noise saves space, reduces, shaft
deflection, increases gear life
|
|
4.High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service.
|
Transmission control and brake systems:
1.The Press adopts the low inertia combined dry pneumatic friction clutch and brake from OMPI, Italy, Smoother press performance, easier maintenance, to ensure reliable safety and flexible action,Iow noise, long service life.
2. Driving gear is installed into the frame and gear is immersed in oil reservoir. Customer could choose Electromagnetic governor. which is stepless speed regulation within a certain range and enlarge the area of craf.
3. The press adopts hexahedral rectangle lengthen gib, which has high guiding precision and steady precision.
Electrical system and the safety interlock:
1. Electrical components are imported or from Sino-foreign joint Venture,in accordance with international standards,reliable safety,long life,good anti-interference ability,a radiation unit is fitted in electrical cabinet. po
2. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.
Anhui Zhongrui Machine Tool Manufacturing Co., Ltd. is one of the leading manufacturers of metal sheet forming machines and equipment. Our main products include WF67Y and WF67K series press brakes, CNC electro-hydraulic press brakes, QC12Y and QC12K plate shear machines, Q11 Y type CNC electro-hydraulic servo gated shears, Q11 mechanical plate shears, W11 type three/four-rolls rolling machines, YTD32 series 4-column hydraulic presses, J23 series mechanical ironworkers, ZRM type edge milling machines, ZRPM turret punching machines and different moulds & blades used on machines.
Zhongrui was founded in 2002 and is located in Bowang Town which is only 20km away from Nanjing Lukou International Airport. With more than 20,000sqm plants, 180 skilled staff members and an efficient R&D team, our monthly output can reach more than 100 units.
As a direct manufacturer and exporter, Zhongrui can provide timely delivery, reliable quality products and competitive prices for customers. Under the ISO9001 Quality Management System, we have established business relationships with many domestic and overseas customers and won high appraise among them.
We would like to supply our fast communication and service for your kind inquiries on our machines. We always welcome relative business partners and companies to be our distributors in your market to realize mutual benefits.
Anhui Zhongrui Machine Tool Manufacturing Co., Ltd. is also one of the leading suppliers of metal fabricating equipment, the main products include:
- Hydraulic Press Brakes
- Manual and CNC
- Hydraulic & Mechanical Shears
- Manual and CNC
- Power press from 40T-500T
- Plate bending rolls (2, 3 and 4 rolls)
- Angel rolling machine
- Tube Bender
- Ironworker
- American and European-style Press Brake Tooling
- Shear Knives
