Quick Details
Description
- Type: Filling Machine
- Condition: New
- Application: Beverage, Chemical, Food, Medical, Powder
- Packaging Type: plywood
- Packaging Material: Wood
- Automatic Grade: Semi-Automatic
- Driven Type: Electric
- Voltage: 220V,50HZ
- Power: 1.1KW
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: Aerospace
- Model Number: YHDBJ-FL
- Dimension(L*W*H): 625*750*1550mm
- Weight: 200KG
- Certification: TUV/CE
- After-sales Service Provided: Engineers available to service machinery overseas
- Function: Filling And Sealing
- Filling material: Powder
- Control System: PLC Control System
- Sealing Film: Complex Film
- Sealing Sides: Three Or Four Sides
- Cutting: One bag one cut or several bags one cut
- Filling Range: 0-50g
- Capacity: 40-60 bags/min
- Keywords: Hot Sales Powder Vertical Packaging Machine

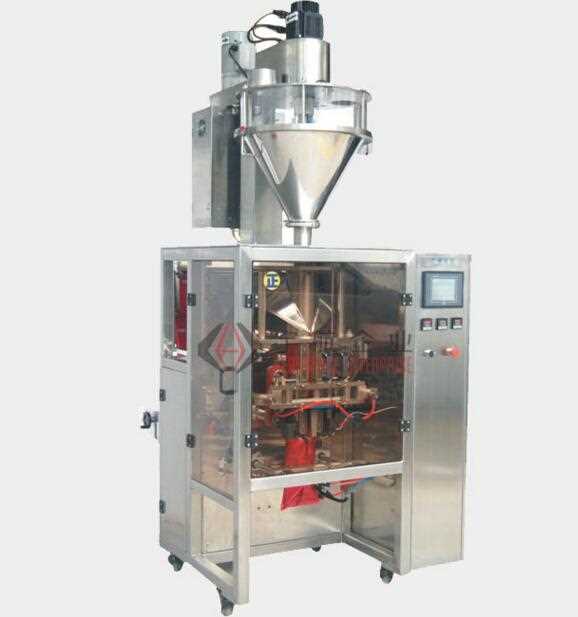

- Name: Back Sealing Coffee Sachet Packaging Machine
Working priciple :
1.This packaging machine used to fill and seal grain products, such as powder, flour, bean powder, desiccating agent, medicine and so on.
2.Automatic finish the processes of pouch forming, filling, sealing, cutting, date printing for pillow pouch packaging. Suitable for complex film.
3.PLC controller and a pattern calibration photoelectric control device ensure the patterns will be complete and beautiful.
4.Sealing method can choose 4 sides or 3 sides sealing according to your requirement.
5.About the cutting, you can choose one bag one cut or several bags one cut accirdubg to your requirement.
Feature:
1.The filling volume is adjustable with 0-50g ,the length of the bag can adjust 1-2mm in the suitation of 3-sides sealing.
2.Quantitative piston pump filling ensure packaging volume can be adjusted within accurate range.
3.The material of hopper and the panel adopt stainless steel.
4.If the filling range is out the the filling volume, you need to change the model.
|
Model
|
YHDBJ-FL
|
|
Filling Style
|
measuring glass
|
|
Bags type
|
Back sealing strip bag
|
|
Measuring range
|
5-50 ml
|
|
Bag –making size
|
L:30-160 W:25-115
|
|
Packing speed
|
40-60bags /min
|
|
Control way
|
PLC control +Chinese English
|
|
Outside case
|
Stainless steel
|
|
Total Power
|
1.1kw
|
|
Voltage
|
380V/50Hz 220V/50-60Hz
|
|
Weight
|
220KG
|
|
Overall Dimension
|
625X750X1550mm
|
|
Packing material
|
Complex film
|
