Quick Details
Description

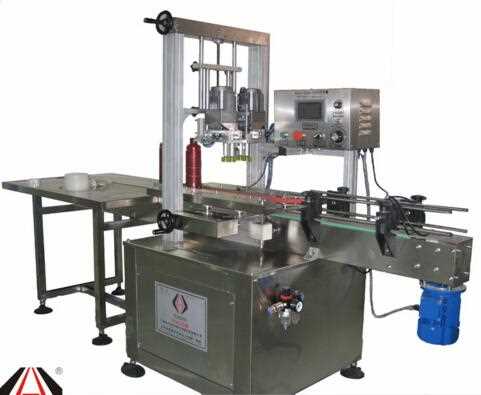

- Type: Capping Machine
- Condition: New
- Application: Chemical, Food, Medical
- Driven Type: Electric
- Automatic Grade: semi-automatic or full automatic
- Voltage: 220V
- Power: 0.75kw
- Packaging Type: bottles , glass,
- Packaging Material: Glass, Metal, Plastic
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: Aerospace
- Model Number: YHXGJ
- Weight: 30kg
- Certification: CE. TUV
- After-sales Service Provided: Engineers available to service machinery overseas
- Material: SUS304
- Function: Auto Feeding Screwing Pressing Caps
- Capping speed: 30-40bottles/min
- Capping type: Screw Capping Locking
One torsion type screw cover institutions:the power is 40W with speed reducer
One cap press institution:use the sonoma tiangong powered cylinder
One Set Bottle positioning mechanism: using sonoma
characterized by thin cylinder
One set of torsion speed adjust
One Set of capping lifting adjust devise
The Torsion Power: 5—12kg/cm
One Set of PLC touch screen controller
One set of photoelectric switch (Japan Omron)
One Set of Conveyor: 820 - K450 chain plate(2Meteter)
conveyor motor adopts dacheng 370 w, with speed reducer
Speed of conveyor:5-15M/min
electricity consumption:500W
Air compressor: 0.4-0.6MPa
The machine is made of stainless steel.
TCHNICAL SPECIFICATIONS
|
Capping diameter
|
20mm-50mm
|
|
Max bottle height
|
300mm
|
|
Voltage
|
220V50Hz
|
|
Capacity
|
30-50B/min
|
|
Timer brand
|
Omron
|
|
Weight
|
100kg
|
|
Overall Dimension
|
2500mm×600mm×1500mm
|
Guangzhou Aerospace Automation & Technology Machinery Co.,Ltd rooted on the factory, Jiangsu Gaoyou Aerospace Chemical Machinery Plant, which was established in 2000 with a registered capital RMB3.5 million, the cover area 9500m2 and the turnover of RMB85 million.Our company is one of five-star member of China Chemical Industrial Mechanism Power Technology Association.
The factory supplys complete machines and production lines for cosmetics, daily-use commodities, medicine and food industry, which all meet GMP standard. The service we offered includes designing, manufacturing, installing, maintaining and technology upgrade of machines and equipments. And our goal is to be the most excellent manufacturer specialized in commodities machinery industry in China.
From the very beginning of establishment, Aerospace machines held the service principle of "Credit First, Customer Priority" with arms to create profits for customers and tried our best to be a leader in this field.
