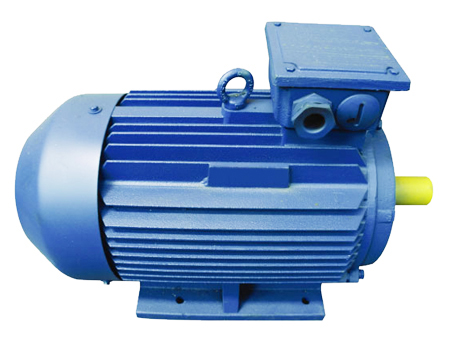

YE2 SERIES OF HIGH-EFFICIENCY ENERGY-SAVING 3-PHASE ASYNCHRONOUS MOTOR Height:132-355 mm ; Power:5.5-315kW Please contact us:hexiaojing523@126.com

Product Details

Quick Details


Apprehending the EU first-level efficiency standard and Chinese energy-efficiency standard profoundly,Zhongda has integrated experience of exported Y2 series motors and NEMA motors and developed the new-generation energy-saving motor.This series has broken the technical barrier of export and/or replaced imported counterparts competitively.
·Reach the internationally general protection level(IP54 or IP55)and insulation class (F insulation and B temperature rise).Boast several features such as high efficiency,high starting torque,low noise,more relible structure and well appearance.
·Adopt the cooling method of IC411 that is matured in the cooling and heat dissipation.
·Properties and mounting dimensions conform to IEC,DIN42673,GB755 and applicable technical specifications.Our company has passed ISO9000 certification and followed its requirements from ordering,development,fabrication,inspection to sales service strictly.
·This series are energized by a 3-phase 380V 50Hz power(60Hz available upon the request).Alternatively run it under 400V,500V,550V or other voltages if you have special requirements.
·Usually this series are connected with Y method if the power is up to 3kW or △ connection method if the output is 4kW and up.
·This series has to work under 40℃and below 1000m altitude.If your working conditions are different,please specify them in the order.

·The duty is S1.
·They can be widely used for driving various common machines and equipments such as compressors,fans,water pumps and crushers.Furthermore they can function as prime motor in relatively severe conditions including petroleum,chemical,pharmaceutical and mining industries.
·The mounting,bearings,terminal box,mouting dimesions are as the same as Y2 series.
YE2 series high-efficiency energy-saving 3-phase asynchronous motor is a new development based on the Y2 series motor while considering the demand for energy conservation around the world.The central height H ranges from 80 to 355 and power is available from 0.55 to 315kW.

Company Profile

 Zhongda Motors Co., Ltd (short for Zhongda Motors) is located in national high-tech new district in Wuxi, Jiangsu province, covers an area of nearly 50,000㎡, 2,500,000kW production capacity , 600 staff which include 138 college degrees or above, 66 developing engineers, 11 senior professional titles and 2 doctors. Zhongda Motors was founded in 1993, nearly 20 years of professional motor manufacturing experiences, good professional production ability and abundant human resources. Recently, by absorbing numbers of senior manager in business, professional technical stylist, perfect profession and strong influence in the field of motor industry, all of them are a development foundation for Zhongda Motors.
    Two parts of main products in Zhongda Motors: Generally motor and explosion-proof motor. Generally motor includes: low voltage (H80-560mm) Y2 series motors and its derived series motor (such as ZYS compressor special motor, YZS injection special motor, Y2VP VSD motor, IP23 motor, IP23 series of biological medical chemical mechanical agitation special motor, Y2D and Y2DT series multi-speed pump fan motor etc.). High voltage (H355-710mm) has YE2HV/YKKE series high voltage high efficient series motor, YE2 / YE2-ODP series high efficient motor, low voltage large power motors etc. Explosion-proof motor mainly include: low voltage YB2 / YB3 / YBK2 / YBF2 (H80-355mm) explosion series motor, YB2 (H355-560mm) low voltage larger power series motor, explosion-proof high voltage motor (H355-630mm) is in the process of certification, which has formed the specialized production scale, the products are widely used in electric power plant, steel plant, coal mine machinery, petrochemical industry, cement machinery, compressor, water pump, fan and paper etc.
    Zhongda Motors has established a long-term strategic partnership with many well-known domestic and oversea companies , actively participate in motor applied technology development and application selection.
    Zhongda Motors is a member of Explosion-proof Motor branch of China Electrical Equipment Industrial Association, Compressor branch of China General Machinery Industry Association. Explosion-proof series motors have already got explosion-proof certification, Safety Certification of Approval for Mining Products, production license. Zhongda Motors has passed the ISO9001 quality system certification, the European Union CE authentication, has the right of import and export , Famous brand of Jiangsu province, approved and established the provincial engineering technology center, the provincial technical center, national postdoctoral workstation, with national laboratory - energy laboratory. To match with customers’ requirement, it depends on our qualified products and a full range of services, Zhongda products are deliver to Europe, Australia, southeast Asia, the Middle East and other countries and regions.
