• Y/YKK/YKS Series High-Voltage Motor

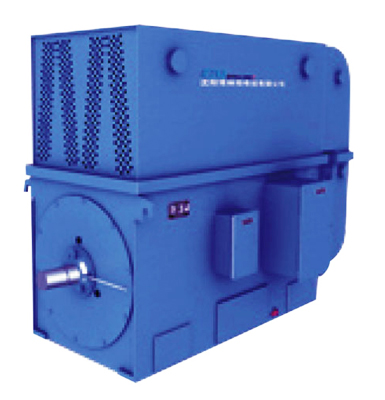

Y/YKK/YKS Series High-Voltage Motor

Y/YKK/YKS Series High-Voltage Motor Height:355-630mm; Power:160-3000KW Please contact us:hexiaojing523@126.com

Product Details

Quick Details


·The performance and mounting dimensions meet the national standard IEC standard .Our company was certified ISO9001-2000,the whole operation including ordering,R&D,manufacturing,sales and service and service is in the line of ISO9001.
·It has the feature of high effiency ,low nosie ,and reliable operation,and easy maintance,etc.
·The motors is designed base on suppl 50HZ(60HZ),3KV,6KV,6.6KV,10KV,11KV,mounting is IMB3(IMB35 on request)The basic mounting is IMB3,IMB35 is on request.
·Cold-rolled lamination steel is used to get low loss and high efficiency. Insulation class F(Rise B)and VPI process insured the insulation system.Grade F insulation is adopt to this series,Temperature rise is B,it can keep the insulation for a long time.
·The cooling method of Y series if IC01, The basic cooling system of Ykk/YKS is air to air cooling or air to water cooling (IC611) It has the advantage of high efficiency,low vibration,low noise and easy-maintain. The bearing structure is considering the form of the motor,the force the motor is beared ,the speed ,etc.Rollor bearing and slip bearing is used.All the motor is dripping grease without stopping.
·The IP degree of Y series is IP23. The IP degree of YKK/YKS series is IP44 or IP54 ,it can prevent splashing into the motor interior.Other IP degree is on request.
·The direct and reduced-voltage starting can be applied under rated frequency and voltage.

·The motors are applicable to drive various types of universal machines,such as compressors,wind machines.pumps and crushers and other mechanical equipment.

Company Profile

 Zhongda Motors Co., Ltd (short for Zhongda Motors) is located in national high-tech new district in Wuxi, Jiangsu province, covers an area of nearly 50,000㎡, 2,500,000kW production capacity , 600 staff which include 138 college degrees or above, 66 developing engineers, 11 senior professional titles and 2 doctors. Zhongda Motors was founded in 1993, nearly 20 years of professional motor manufacturing experiences, good professional production ability and abundant human resources. Recently, by absorbing numbers of senior manager in business, professional technical stylist, perfect profession and strong influence in the field of motor industry, all of them are a development foundation for Zhongda Motors.
    Two parts of main products in Zhongda Motors: Generally motor and explosion-proof motor. Generally motor includes: low voltage (H80-560mm) Y2 series motors and its derived series motor (such as ZYS compressor special motor, YZS injection special motor, Y2VP VSD motor, IP23 motor, IP23 series of biological medical chemical mechanical agitation special motor, Y2D and Y2DT series multi-speed pump fan motor etc.). High voltage (H355-710mm) has YE2HV/YKKE series high voltage high efficient series motor, YE2 / YE2-ODP series high efficient motor, low voltage large power motors etc. Explosion-proof motor mainly include: low voltage YB2 / YB3 / YBK2 / YBF2 (H80-355mm) explosion series motor, YB2 (H355-560mm) low voltage larger power series motor, explosion-proof high voltage motor (H355-630mm) is in the process of certification, which has formed the specialized production scale, the products are widely used in electric power plant, steel plant, coal mine machinery, petrochemical industry, cement machinery, compressor, water pump, fan and paper etc.
    Zhongda Motors has established a long-term strategic partnership with many well-known domestic and oversea companies , actively participate in motor applied technology development and application selection.
    Zhongda Motors is a member of Explosion-proof Motor branch of China Electrical Equipment Industrial Association, Compressor branch of China General Machinery Industry Association. Explosion-proof series motors have already got explosion-proof certification, Safety Certification of Approval for Mining Products, production license. Zhongda Motors has passed the ISO9001 quality system certification, the European Union CE authentication, has the right of import and export , Famous brand of Jiangsu province, approved and established the provincial engineering technology center, the provincial technical center, national postdoctoral workstation, with national laboratory - energy laboratory. To match with customers’ requirement, it depends on our qualified products and a full range of services, Zhongda products are deliver to Europe, Australia, southeast Asia, the Middle East and other countries and regions.
