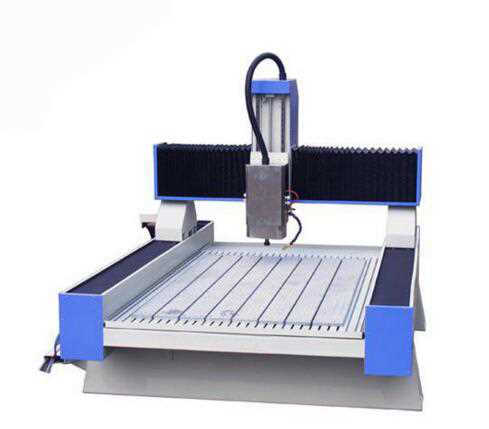

Quick Details
Description
- Condition: New
- CNC or Not: CNC
- Place of Origin: Shandong, China (Mainland)
- Brand Name: TIANJIAO
- Model Number: TJ1224
- Voltage: 220V/380V
- Power(W): 2.2kw
- Dimension(L*W*H): 1200X2400x200mm
- Weight: 1000kg
- Certification: CE
- Warranty: 1 Year
- After-sales Service Provided: Engineers available to service machinery overseas
- certificate: CE
- motor driver: YASKAWA Servo and drier
- spindle: Italy HSD
- cooling way: Air-cooling
- Auto-tool changer: yes
- Working area: 1200X2400x200mm
- Transmission: Rack and pinion
- Work Holding: By suction or clamp
- Control system: NC Studio
- Application: Woodworking
Specification
1. Structure: Integral cast frame, solidity and stable.
2. Accuracy: Adopt High precision Square Guid Rail and imported high accuracy rack gear to ensure more stable movement and high accuracy.
3. Appearance: Aluminum decorative appearance, beautiful design and then makes
the whole machine magnificently.
4. Spindle: Advanced water-cooling brushless spindle, low noise, more power, long-time mass processing.
5. The three axes adopt dust protector; ensure the equipment with long service life.
6. Design: It adopt several kinds of electrical parts with good design to minimize the failure ratio.
7. Multi-functions: It can support ArtCAM/ Ucancam and several kinds of CAD/CAM design software.
Application
This machine is widely used in advertising industry, such as sign making, breast card, office board ,ruler, art crafts, small metal sign plate, construction models and so on.
Efficient manufacturing of wooden products, advertising billboard, acrylic cutting, letter mold form-ling and mass cutting. Also the machine can engrave on iron, brass, aluminum, plastic and wood boards and other non-metal materials.
Parameter
|
NO.
|
Description
|
Parameter
|
|
1
|
X,Y,Z Working Area
|
1200X2400x200mm
|
|
2
|
Table Size
|
1520x2850mm
|
|
3
|
X,Y,Z Traveling Positioning Accuracy
|
±0.03/300mm
|
|
4
|
X,Y,Z repositioning Positioning Accuracy
|
±0.05mm
|
|
5
|
Lathe Structure
|
Cast structure
|
|
6
|
X, Y Structure
|
Shaft Linear Bearings and Ball Screw
|
|
7
|
Z Structure
|
Ball Screw
|
|
8
|
Max. Consume power
|
3.0Kw
|
|
9
|
Max. Speed
|
0-12000mm/min
|
|
10
|
Max. Working Speed
|
0-8000mm/min
|
|
11
|
Spindle Power Motor
|
2.2kw water-coolant spindle (3.0kw optional)
|
|
12
|
Spindle Speed
|
0-24000RPM
|
|
13
|
Drive Mode
|
Stepper Motor
|
|
14
|
Working Voltage
|
AC220V/380V, 50/60Hz
|
|
15
|
Command
|
G code, *uoo, *mmg, *plt
|
|
16
|
Operating System
|
NC-STUDIO Control system(DSP,MACH3 optional)
|
|
17
|
Interface
|
USB
|
|
18
|
Flash Memory
|
128M
|
|
19
|
Collet
|
ER20
|
|
20
|
X,Y Working Delicacy
|
<0.01mm
|
|
21
|
Software
|
Ucancam, Artcam,type3
|
|
22
|
Running circumstance
|
Temperature: 0℃~45℃ Relative humidity: 30%~75%
|
|
23
|
Packing Size
|
1800X3200X1450mm
|
|
24
|
Net Weight
|
800KG
|
|
25
|
Gross Weight
|
950KG
|
Jinan Tian Jiao Machinery Manufacture Co., Ltd. specializes in developing and manufacturing Mechanical CNC routers, CNC Laser machines, Plasma cutting machines, cutting plotters and other machines. We provide global market with high quality CNC equipment. We are a leading company in this field, being confident in offering the best service and best quality.
With many years' hard work and perfect management system, we have classified our products into several categories: woodworking machines, advertising machines, ATC machines, stone working machines, plasma cutting machines, laser machines and plotters. We can also customize products and offer OEM service. Our products have been exported to many overseas countries, gaining good comments.
We hope to be your good, long-term and honest partner. Wish you can get joy and satisfaction from our products and service.
