Quick Details
Description
- Condition: New
- CNC or Not: CNC
- Place of Origin: Shandong, China (Mainland)
- Brand Name: Tianjiao
- Model Number: 2030
- Voltage: 220V/380V
- Power(W): 4.5KW
- Dimension(L*W*H): 2000*3000*200mm
- Weight: 1800KG
- Certification: CE
- Warranty: 1 Year
- After-sales Service Provided: Engineers available to service machinery overseas
- Control system: Ncstudio
- Application: Woodworking
- Spindle: Water Cooling Spindle

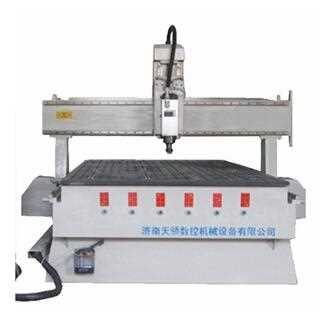

- Name: Woodworking Cnc Router
- Motor: Stepper
- Product name: CNC Wood Working Machine
- Working area: 2000*3000mm
- Transmission: Ball Screw
- Spindle power: 3.0KW
- Software: Artcam
Feature Of Wood Router
This is one model with three processes,It's a intelligent and economical automatic tool change equipment.
The form of tool change:the spindle can switch instantly.
Double motors and drivers of Y axis ensure steady movement.
Rack gear transmission ensures fast speed and high accuracy.
Imported square rail ensures high accuracy and heavy workload.
Intelligent protection of working table can avoid damage resulted from the wrong operation.
Intelligent overrunning protection can avoid mechanical collision when set graphic exceeds processing size.
And we have variety of models for your selection.
Application Of Wood Router
This machine is widely used in furniture processing industry, home decoration, wood working decoration, doors manufacturing, wood art craft and so on. it is also widely used in processing for single lines, milling,3D embossing, cutting and engraving etc.
Efficient manufacturing of wooden products, advertising billboard, acrylic cutting, letter mold form-ling and mass cutting. Also the machine can engrave on iron, brass, aluminum, plastic and wood boards and other non-metal materials.
Technhical Data Of Wood Router
|
Tianjiao 1325 Three Processes CNC Wood Router
|
|
Description
|
Parameter
|
|
X,Y,ZWorking Area
|
2000×3000×200mm
|
|
Table Size
|
2300×3200mm
|
|
X,Y,Z Traveling Positioning Accuracy
|
±0.03/300mm
|
|
X,Y,Z Repositioning Positioning Accuracy
|
±0.05mm
|
|
Lathe Structure
|
Welded Structure
|
|
X,Y Structure
|
Rack Gear Transmission
Shaft Linear Bearings
|
|
Z Structure
|
TBI Ball Screw
Shaft Linear Bearings
|
|
Max. Consume Power
|
6.5KW
|
|
Max. Speed
|
0-32000mm/min
|
|
Max. Working Speed
|
0-20000mm/min
|
|
Spindle Power Motor
|
3.0KW Water-coolant Spindle
|
|
Spindle Speed
|
0-24000RPM
|
|
Driver Mode
|
Japan Servo Motor And Driver
|
|
Working Voltage
|
AC220V/380V, 50/60HZ
|
|
Command
|
G Code,*uoo,*mmg,*plt
|
|
Operating System
|
NC-STUDIO System(DSP Optional)
|
|
Interface
|
USB
|
|
Flash Memory
|
128M
|
|
Collet
|
ER20
|
|
X,Y Working Delicacy
|
<0.01mm
|
|
Software
|
Ucancam,Artcam,Type3
|
|
Running Circumstance
|
Temperature:0℃~45℃
Relative Humidity 30%~75%
|
|
All Parameters Above Subject To Change Without Prior Notice
|
