Quick Details
Description
- Processing Type: Other
- Condition: New
- Product Type: PVC Profile
- Place of Origin: Shandong, China (Mainland)
- Brand Name: Bohman
- Model Number: SQJB-CNC-120
- Voltage: 380V 50Hz
- Dimension(L*W*H): 1600*880*1650 kg
- Weight: 600 kg
- Certification: CE
- Warranty: one year
- After-sales Service Provided: Engineers available to service machinery overseas
- Processing Profile Width: 20-100 mm
- Processing Profile Height: 20-150 mm
- Principal Axis Rotate Speed: 2800 r/min
- Working Air Pressure: 0.4-0.7 Mpa
- Air Consumption: 80 L/min
- Drawing Groove Width: 3 mm
- Drawing Groove Depth: 0.3 mm

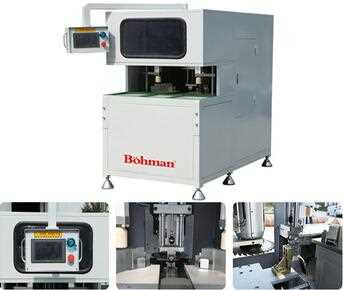

Special for cleaning all corner seams of the PVC window frames and sashes.
Be equipped with the high efficiency servo system which can cleaning automatically for all the corner seams in quick speed.
Adopts industry grade computer system, closed-loop controlling, ensures high precision.
To store many processing programs with different specification of profile.
To make the arch error and diagonal error compensations, so as to meet the requirement for produce high quality window and door with different section profile.
Specification
|
Input Power
|
1.5 kw
|
|
Input Power
|
380V 50Hz
|
|
Working Air Pressure
|
0.4-0.7 Mpa
|
|
Air Consumption
|
80 l/min
|
|
Motor Rotary Speed
|
2800 r/min
|
|
Cutting Width
|
20-100 mm
|
|
Cutting Height
|
20-150 mm
|
|
Drawing Groove Width
|
3 mm
|
|
Drawing Groove Depth
|
0.3 mm
|
|
Overall Dimension
|
1600*880*1650
|
|
Weight
|
600 kg
|
