Quick Details
Description
- Place of Origin: Shandong, China (Mainland)
- Brand Name: Bohman
- Model Number: LM4-CNC-100*1800*3000
- After-sales Service Provided: Engineers available to service machinery overseas
- Voltage: 380V/220V
- Rated power: 4KW
- Rated oil pressure: 15Mpa
- Operation air pressure: 0.5-0.8Mpa
- Air consumption: 60L
- Max.frame dimension: 1800*3000mm
- Min.frame dimension: 550*550mm
- Profile width: 93mm
- Dimension: 4700*2200*2500mm
- Weight: 2500kg
Features:

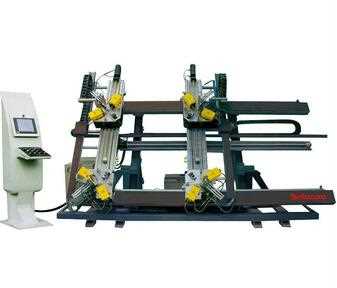

♦ Used for corner punching combination of aluminum windows and doors, four
corners connecting at one time are available
♦Clamping device can auto move forward and backward, making the operation
convenient
♦ The rack is weld professionally of AN Steel materials, and with aging treatment
♦ Adopting the imported CNC system ensure the speed and accuracy
♦ The torque monitoring function of the service system can realize auto-press the
four corners, ensuring the corner connector accuracy
♦ The corner-crimping blade can be adjusted according to the requirement of
different profile
♦One time for corner combining can control the seam and plane, make the frame
quality foresight
♦Using ball bearing to keep the high precision
♦ The control system and service system make the connect no-seam and improve
the control accuracy
Technical Parameters:
|
Voltage
|
380V/220
|
|
Rated power
|
4 Kw
|
|
Rated oil pressure
|
15Mpa
|
|
Operation air pressure
|
0.5-0.8Mpa
|
|
Air consumption
|
0.45L/ounce
|
|
Capacity of oil box
|
60L
|
|
Corner crimping casing movement journey
|
0-50mm
|
|
Max frame dimension
|
1800X3000MM
|
|
Min frame dimension
|
550mmx550mm
|
|
Profile width
|
93mm
|
|
Cater-corner error finshed windows
|
≤1mm
|
|
Connection seam error
|
≤0.15mm
|
|
Contour dimension
|
4700mm*2200mm*2500mm
|
|
Weight
|
2500kgs
|
Jinan Bohman Machinery Co., Ltd., located in West-high Speed Railway Station, Jinan City, Shandong Province, is a high-tech enterprise specialized in the research, manufacture and sale of aluminum-plastic door & window production equipment, high and medium grades of insulating glass production equipment and CNC router. Our products sell very well in China and are exported to many foreign countries and regions. We have many experienced technical engineers and experts who have been worked in this industry for many years. We are familiar with the situation of this industry at home and abroad. We have mastered the latest technique of the similar equipment, and have got strong ability of product research and technique support.
Based on the modern technique, we have produced all kinds of aluminum-plastic door & window production equipment and high and medium grade insulating glass production equipment, with modern technology and stable performance. Our main products are saw cutting equipment, milling equipment, angle seam cleaning equipment, angle joint equipment, various specifications of vertical insulating glass production lines, glass curtain wall production lines, LJT butyl coating machines, GT03 bicomponent rubber spreading machines, compound sealing spacer insulating glass production lines and all kinds of auxiliary equipment.
By virtue of specialized production, good quality and excellent after-sales service, Bohman has got wide recognition and praise from customers at home and abroad. Since the establishment of our company, we have taken "being an honest enterprise, producing the best equipment" as our tenet and taken the quality of our products as the lifeline of our enterprise. We also focus on the research and development of energy saving and environmentally friendly products, try to make the best equipment for manufacturing aluminum-plastic doors & windows and insulating glass and make Bohman a world famous brand.
The need of customers is the aim of our company. Jinan Bohman Machinery will do whatever we can to help you. We are really looking forward to cooperating with you in the near future.
