Quick Details
Description
- Type: Packaging Line
- Condition: New
- Application: book,excercise book
- Packaging Type: rolled kraft paper
- Packaging Material: Paper
- Automatic Grade: Automatic
- Driven Type: Electric
- Voltage: 380V
- Power: 4kw
- Place of Origin: Beijing, China (Mainland)
- Brand Name: Runda
- Model Number: SD310
- Dimension(L*W*H): 6000*2100*2100mm
- Weight: 4000KG
- Certification: CE
- After-sales Service Provided: Engineers available to service machinery overseas
- packing size: 93*130--210*297mm
- packing height: 90-260mm
- machine speed: 0-10 package/min
- industrial control system: Schneider
- application: binding,packing factory

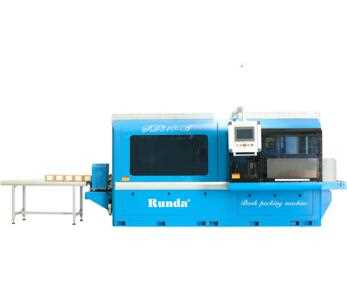

SD310 Book packaging machine is suit for 16-64k books three-dimensional packaging.This machine adopts servo drive, advanced Schneider industrial automation control system ,realized book sending, paper cutting, pasting, folding, packaging, label sticking and other processes .
Features
1 This machine adopts the servo motor and the pneumatic drive as the main body, using the multi-function digital frequency conversion stepless speed regulation, PLC programming control technology.
2 Touch screen to realize man-machine interface operation.
3 Automatic paper feeding technology, automatic transmission with manual packing.
4 Automatic sticking label function.
5 Main body adopt whole structure design,to ensure the machine steady .
Technical parameters
|
Package range (mm)
|
930*130 240*310
|
|
Package height(mm)
|
90-280
|
|
Max.Mechanical speed
|
12packages/min
|
|
Craft paper
|
70g/mm rolled craft paper
|
|
Power
|
4KW
|
|
The Max dia.of craft paper
|
480
|
|
The Min dia.of craft paper
|
75-80
|
|
Overall size(mm)
|
6000×2100×2100
|
|
Weight/kg
|
4000
|
