Incoming-feeder and outgoing-feeder function in distribution systems
Switching and protecting large powers, motors, capacitors,generators, transformers, busbars and cables.
Overload protection
Short-circuit protection with short delay
Instantaneous short-circuit protection
Used in building, industry, energy and infrastructure
|
Type
|

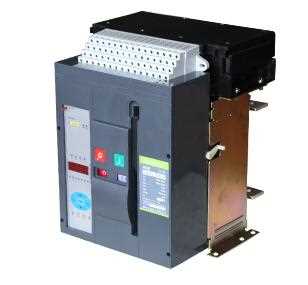

SCW2-1600
|
|
Standard
|
IEC60947-2
|
|
Approval
|
CE
|
|
Rated frame current In (A)
|
1600
|
|
Number of poles
|
3,4
|
|
Class of breaking capacity
|
N
|
H
|
|
Rated current In(A)
|
200 400 630 800 1000 1250 1600
|
|
Rated frequency (Hz)
|
50/60
|
|
Rated voltage, Ue (V)
|
400 690
|
|
Rated insulating voltage Ui (V)
|
1000
|
|
Rated impulsed withstand voltage, Uimp(kV)
|
12
|
|
N-pole rated current
|
100%In
|
|
Rated ultimate short-circuit breaking capacity, Icu
|
|
|
(AC) 50-60 Hz 400V O-CO (kA)
|
65
|
65
|
|
(AC) 50-60 Hz 690V O-CO (kA)
|
30
|
35
|
|
Rated operating short-circuit breaking capacity,Ics
|
|
|
(AC) 50-60 Hz 400V O-CO-CO (kA)
|
42
|
55
|
|
(AC) 50-60 Hz 690V O-CO-CO (kA)
|
30
|
35
|
|
Rated short-circuit making capacity (peak),Icm
|
|
|
(AC) 50-60 Hz 400V (kA)
|
143
|
143
|
|
(AC) 50-60 Hz 690V (kA)
|
63
|
73
|
|
Rated short-time withstand current for 1s Icw (kA)
|
|
|
(AC) 50-60 Hz 400V (kA/s)
|
42
|
50
|
|
(AC) 50-60 Hz 690V (kA/s)
|
-
|
-
|
|
Making time(mS)
|
25-30
|
|
Max breaking time(mS)
|
70
|
|
Electrical life (times) in 400V
|
6500
|
|
in 690V
|
3000
|
|
Mechanical life (times) without maintenance
|
15000
|
|
with maintenance
|
30000
|
|
Installation type
|
Fixed /Drawer
|
|
Ambient temperature
|
-5 to +40℃,max. 95 % humidity
|
|
Storage temperature
|
-40 to +75℃
|
|
Altitude( Max)
|
2000
|
|
