Quick Details
Description
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: SINOTEC / OEM
- Model Number: SCB2
- Type: Mini
- Poles Number: 1P/2P/3P
- Certificate: CE ISO CCC
- Services: OEM ODM

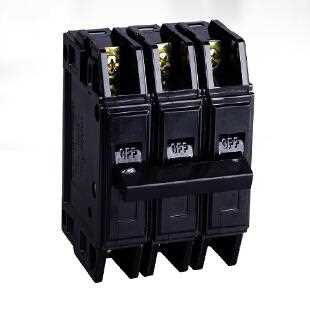

SCB2 series miniature circuit breaker has characteristics of small size, light weight, and excellent performance. They are mounted in the illuminating distribution board and used in guesthouses, block of flats, high buildings, squares, airports, railway stations, plants and enterprises etc, in AC circuits 240V (single pole) up to 415V(3 pole) 50Hz for protection of overload, short circuit and for circuit change-over in lighting system. Breaking capacity is 3KA. The items comply with BS & NEMA standard.
Series Specification
|
Pole number
|
Rated current(A)
|
Rated voltage(V)
|
Rated making and breaking capacity(kA)
|
|
B.S
|
NEMA
|
|
1P
|
6,10,15,20,30,40,50,60
|
AC12
|
|
5
|
|
AC120/240
|
|
5
|
|
AC240/415
|
3
|
|
|
2P
|
6,10,15,20,30,40,50,60
|
AC120/240
|
|
5
|
|
AC240/415
|
3
|
|
|
3P
|
AC240/415
|
3
|
|
