Quick Details
Parameter
Condition : New
Application : pp yarn
Screw Design : Single-screw
Brand Name : MEC
Certification : ISO
Place of Origin : Dalian, China (Mainland)
After-sales Service : Engineers available to service overseas
Description
Performance And Characteristics

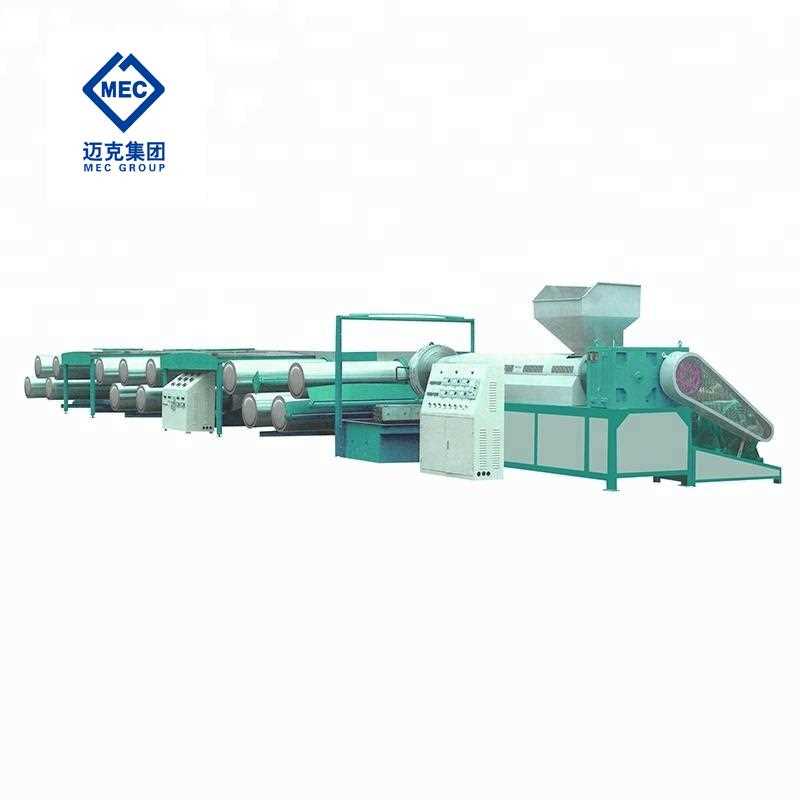

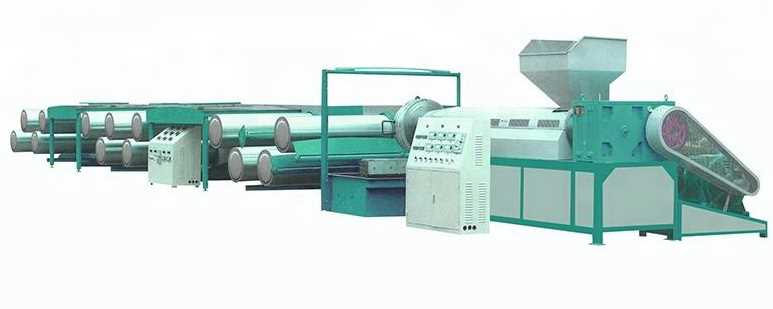

The machine using materials of Polypropylene(PP) or high density Polyethylene(HDPE),throughtheating,extruding,splitting the film into tapes, stretching and forming flat tapes. Then winding on the bobbins by winders, finally put the bobbiins with tapes on circular loom for weaving.
After improving many times ,the machine can use 100% recycling material,powder and granule material to produce tapes. The screw and cylinder of extruder are made of 38CrMoA1A alloy steel , the hardness is over HV950 after nitriding treament. Helical geareducer made of 20CrMnTi alloy steel is applied to the gear of extruder. The traction devices adopts touch screen to change speed which enable stable drawing.
Main Technical Parameter
|
Type
|
PEL-135/B1600
|
PEL-140/B1800
|
PEL-145/B2000
|
PEL-150/B2200
|
|
Diameter of Screw(mm)
|
135
|
140
|
145
|
150
|
|
L/D ratio of screw
|
26:1
|
26:1
|
26:1
|
26:1
|
|
Rotational speed of screw(r/min)
|
22-65
|
22-65
|
22-60
|
22-60
|
|
Width of die(mm)
|
1600
|
1800
|
2000
|
2200
|
|
Motor power of extruder (kw)
|
37
|
37
|
45
|
55
|
|
Heating power of extruder (kw)
|
77
|
80
|
86
|
86
|
|
Power of drawing motor (kw)
|
7.5
|
7.5
|
7.5
|
11
|
|
Heating power of the oven (kw)
|
20
|
20
|
22
|
22
|
|
Drawing rate
|
4-12
|
4-12
|
4-12
|
4-12
|
|
Thickness of tape(mm)
|
0.03-0.08
|
0.03-0.08
|
0.03-0.08
|
0.03-0.08
|
|
Production capacity(kg/h)
|
90-180
|
100-200
|
110-240
|
120-260
|
|
Drawing speed(m/min)
|
50-150
|
50-150
|
50-150
|
50-150
|
|
Installing dimensions(L*W*H)mm
|
20000*2600*2200
|
20000*3400*2200
|
21000*3400*2200
|
22000*3700*2200
|
|
Weight(kg)
|
16000
|
17000
|
20000
|
22000
|
Technical Paramters are subject to change without prior notice!

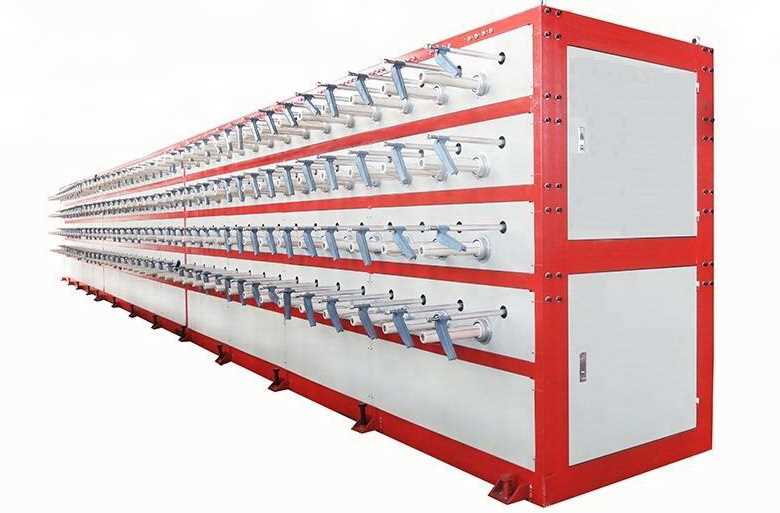

This machine can match with pp woven winding machine as following
