  • Four Shuttle Plastic Circular Loom Bags

Four Shuttle Plastic Circular Loom Bags

The machine is suitable for flat yarn of polypropylene (PP), high density polyethylene (HDPE) as raw materials which produce high efficiency cloth of woven bag.Its characteristic is using the most advanced small cam,low noise, weaving speed,high efficiency and energy saving.

Product Details

Quick Details Parameter

Brand Name : MEC
Condition : New
Warp number : 720
Computerized : Yes
Place of Origin : Dalian, China (Mainland)
Number of shuttle : 4
Certification : ISO9001

Description

Performance And Characteristics

  • With the scroll transmission by little cam and swing-arm wheel,the mchine runs easily and stably,non-lubrication.
  • With the detector for warp-breaking,welft-breakingand weft-ending,the sensibility for automatic stop becomes reliable.
  • It adopts the latest energy saving synchronous motor and the intelligent micro-computer controlling system can be installed if required. It can adjust the weft density and compensate the weft density in case of weft-braking,which can improve the evenness of woven fabrics



Main Technical parameter

Type

SFL-750J/4

SFL-1100J/4

SFL-1400J/4

Number of shuttle

4

4

4

Lay-flat width (40warps/100mm)

300-750

550-1100

700-1400

Max .warp (pcs)

768

896

1040

Revolutions of main motor (r/min)

140-180

120-160

90-125

Capacity (m/h) (40wefts/100mm)

65-100

72-96

54-75

Noise (A)

<85

<65

<65

Total power of motor (kw)

2.2

2.7

3.5

Installing dimensions (L*W*H)mm

8500*2200*2730

8900*2350*2960

9800*2500*2960

Weight (kg)

1600

2000

2300

Technical parameters are subject to change without prior notice!

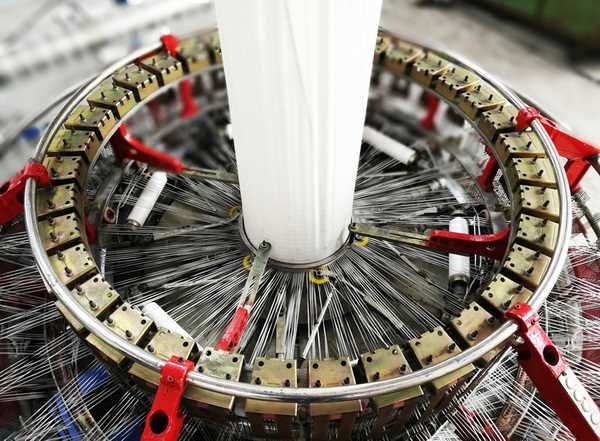

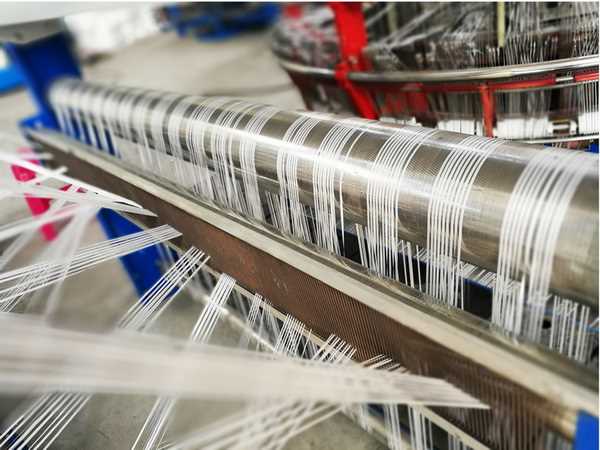

Detail Picture
