• Parallel Conventional Lathe Machine

Parallel Conventional Lathe Machine

*Parallel Conventional Lathe Machine with Spindle bore 130mm *Swing over bed(mm) 940 Please contact:naijiaxin11@yeah.net

Product Details

Quick Details

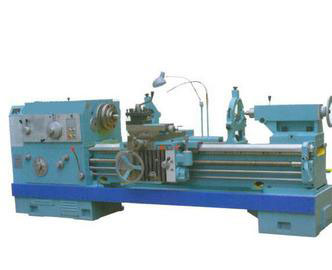

Parallel Conventional Lathe Machine  with Spindle bore 130mm
These lathes are suitable mainly for turning internal and external cylindrical , Conical and other swing surface as well as various metric ,inch, module and diametric pitch threads.They can also be used for broaching oil grooves and keyways.There are also following features:
1. The side wall of bed is constructed with double-rib Plates,and the shape of internal ribs is of box type and bevel ribs combination.The rigidity is higher than that fo ordinary lathes. The precision is stable. And these lathes can carry out strong force cutting.
2.On apron, there is a device ,operated by a single lever, used for rapid traverse of the carriage . Spindle’s braking and rotating direction change is controlled by hydraulic system, or by hand operation, all to user’s choice.
3. The saddle guide way is glued by “TSF” soft belt wear resisting materials.
4. On user’s demand, we can equip the lathe with automatic feeding mechanism .The top slide can be used independently for turning of short cone. In combination with longitudinal feeding , it can also turn long taper surface.
Model SHCW-6294B(3000mm)
Swing over bed(mm) 940
Swing over carriage(mm) 660
Maximum length of workpiece(mm) 3000
Maximum turning length(mm) 2850
Swing over gap(mm) 1140
Effective width of gap(mm) 300
Pan of guideway(mm) 550
Spindle nose C11
Spindle bore(mm) 130
Taper hole of spindle 1:20/120
Range of spindle speeds(r/min) 6-800
Number of spindle speeds 18
Longitudinal and cross(r/min) 64;0.1-24.32
Cross-to-long longitudinal feed rate 1.0/2.0
Screw pitch of leadscrew(mm) 12
Number and range of metric thread(mm) 50;1-240
Number and range of inch thread 26;14-1
Number and range of module thread(mm) 53;0.5-120
Number and range of diametrical pitch thread 24;28-1
Rapid traverse speed of carriage(mm/min) 4000
Max.travel of cross slide(mm) 570
Max.travel of top slide(mm) 200
Section of tool shank(mm) 32
Diameter of tailstock quill(mm) 100
Travel of tailstock quill(mm) 250
Taper hole of tailstock quill Morse 5
Main motor power(kw) 11
Machine mass(kg) 5400
Length(mm) 5225
Width(mm) 1430
Height(mm) 1690

Company Profile

Our company has a history of over 40 years in machining and manufacturing. We obtained the permission of export license approved by the Ministry of Foreign Economic Relations and Trade in 1997. There are more than 30 kinds of diversified woodworking machines and 10 kinds of panel saw and edge bander machines and multi boring machines and high speed routers with SHOOT BRAND, which are exported to over 20 countries and regions in the world. Most of our products have been certified by European Community safety standards and being sold well in European countries.

With tremendous strength in technology, superior equipment, advanced production technique, complete and strict testing measures, a perfect quality control system, our firm has product design and computerized techniques.

Our corporation is located in the east of Yantai, a beautiful and rich city with pleasant weather. It is 190 kilometers away from Qingdao in the south and 100 kilometers front Weihai in the east with sea and land and air convenient communications and excellent telecommunication. We are looking forward to establishing more and more business relationships with customers all over the world.
