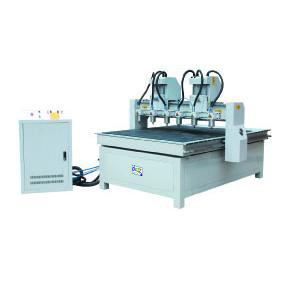

• CNC Woodworking Router Machine SHCNC-1325F with X Y working area 1300x2500mm

CNC Woodworking Router Machine SHCNC-1325F with X Y working area 1300x2500mm

*CNC Woodworking Router Machine *X Y working area 1300x2500mm *Z working area 200mm *Table size 1680x3000mm Please contact:naijiaxin11@yeah.net

Product Details

Quick Details


High speed style . Adopt whole steel structure , high speed gear wheel and Italy water cooling spindle.
Wood working area : waving board , cabinet door , solid wood door , craft wood door , no-paint door , folding screen , craft window ,shoe polisher , game machine cabinet , Ma-jiang Table , computer table and panel type funiture .
Advertising Area : making advertising products made from Brand Board , Acryl cutting , mould and some other material .
Mould Area : Metal mould eg :engraving copper , aluminium and iron, and nonmetal mould eg scagliola ,sandstone , plastic board , PVC pipe , wood sheet etc .
Other area : art and craft area , embossment and engraving photo.
1. It adopts ceremic bearing spindle, this spindle has high precision, long life time, low noise, small quiver, good parallel.
2. The whole steel structure , well welded , no distortion for whole structure .
3. Adopt imported square orbit , double slippers . Bearing heavy , working steadily , high precision , and long life time .
4. DSP controller system with USB interface , working without connecting with computer during working and easy to control .
5. Software : CAD / DAM designing software eg Type 3 / ArtCAM / Castmate / Wentai etc.
6. Vacuum Table with 6 vacuum zones, which can adsorb different sizes materials. Options for vacuum pump : Vacuum pump made in China or No-oil vacuum pump made in Germany .
7. Auto Oilling system. Easy to operate by pressing one key .
8. Adopt high speed stepper motor and drivers, and two motors for Y axis . Max speed is 35M/MIN .
9. Auto Aligning System .
10. Temperature Control System . Can prolong the life time of the spindle .

Company Profile

Our company has a history of over 40 years in machining and manufacturing. We obtained the permission of export license approved by the Ministry of Foreign Economic Relations and Trade in 1997. There are more than 30 kinds of diversified woodworking machines and 10 kinds of panel saw and edge bander machines and multi boring machines and high speed routers with SHOOT BRAND, which are exported to over 20 countries and regions in the world. Most of our products have been certified by European Community safety standards and being sold well in European countries.

With tremendous strength in technology, superior equipment, advanced production technique, complete and strict testing measures, a perfect quality control system, our firm has product design and computerized techniques.

Our corporation is located in the east of Yantai, a beautiful and rich city with pleasant weather. It is 190 kilometers away from Qingdao in the south and 100 kilometers front Weihai in the east with sea and land and air convenient communications and excellent telecommunication. We are looking forward to establishing more and more business relationships with customers all over the world.
