Quick Details
Description
- Processing Type: Other
- Condition: New
- Product Type: PVC Profile
- Place of Origin: Shandong, China (Mainland)
- Brand Name: DECA T&D
- Model Number: SHZ2HA-260*4000
- Voltage: 220V, 50 HZ
- Power(W): 3.5KW
- Dimension(L*W*H):4750mm*1750mm*1100mm
- Weight: 760kg
- Certification: Other
- Warranty: one year
- After-sales Service Provided: Engineers available to service machinery overseas
- New Color: white
- Key Words: Seamless Welding
- Function: Color window welding
Function:

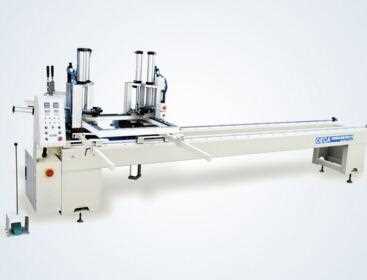

Used for general profile and colored profile corner welding, and the micro-seam cleaning of colored profile.
Features:
Two types welding(2mm-seam general welding and 0.2mm-seam colored profile seamless welding)is available and can be transferred by adjustment.
Short time for profile heating and welding, increase the efficiency
The max. welding height reach to 240mm, and two pieces profiles welding (less than 120mm) at one time is available by change the double layer profile fixture
All motion pair adopted linear bearing guide system, increased processing precision
Adjustable positioning distance, heating distance and feeding distance, ensured the optimal welding quality.
Special profile fixture is easy to change, for high corner strength and later good cleaning effect
Compact machine structure, convenient for adjusting, operating and repairing.
Parameter:
|
Operation Air Pressure:
|
0.6~0.8 MPa
|
|
Air Consumption :
|
40 L/min
|
|
Power Supply :
|
220V ~ 50Hz
|
|
Input Power:
|
3.5 kW
|
|
Max. welding height :
|
260mm
|
|
Overall Dimension :
|
4750×1100×1750 mm
|
|
Weight :
|
760 kg
|
