Quick Details
Description

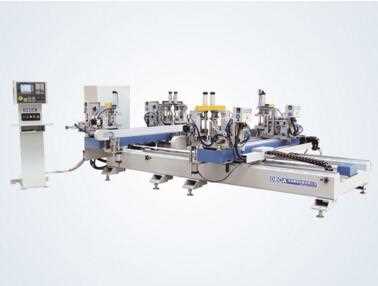

- Function: welding PVC windows
- Efficiency: one time one frame
- Control: Siemens system
- Type: Horizontal
- Welding seam: 2mm , 0.2mm
Function:
Latest vertion used for top grade white profile and color profile welding automatically.
Features:
It can realize automatica conversion from 0.2mm to 2mm welding.
Horizontal lay and adopt the strengthened rigidity design, stable and reliable.
Machine head designed with special rigidity to meet the requirement of color profile welding.
The moving part of head adopts square guide linear motion pare with stable and reliable performance.
Special Know-how technique keeps high corner strength and quality.
Profile fixture can be easy to change for fast and gop grade window and door fabrication.
Imported whole CNC system and high-quality electrical and pneumatic system which makes it reliable.
Optimized programme design with high-production efficiency.
Special automatic rofile un-loading device to reduce labor intensity.
Parameter:
|
Air Pressure:
|
0.6MPa~0.8MPa
|
|
Air Consumption:
|
80L/min
|
|
Input Voltage:
|
380V/220V 50Hz
|
|
Input Power:
|
10KW
|
|
Welding Height:
|
20mm~135mm
|
|
Max.Welding Width:
|
120mm
|
|
Welding Range:
|
500mm×650mm~1800mm×3000mm
|
|
Overall Dimension:
|
5200mm×5000mm×1600mm
|
|
Weight:
|
2800kg
|
Jinan Deca machine co., Ltd under the banner of Jinan Deca Machine Holding Co., Ltd is the top brand company in china special in Research and Development, production and sales for PVC window and door fabrication machines. There are more than 30 technicians and engineers in our strong Research and Development team and dozens of global advanced CNC machining centers in our facility. We have already achieved the win-win combination with many partners who come from US, Germany, UK and South Korea etc. to build a worldwide machine manufacturing center for window and door industry. Relying on our own Research and Development strength and comprehensive global sales network, we have steadily established the leading position in the field.
We have already passed the ISO9001:2000 quality system certification and European CE safety certification. Up to now, our products have been exported to more than 60 countries and regions. Except for the steady market of Southeast Asia, Russia and other countries and regions etc. we are also entering the main market of the developed area for window and door industry step by step, such as the US, Germany, Italy and UK.
We are the first company in the industry who developed top end CNC equipments like the welding / cleaning production line, cutting / milling center and so on which is used for the manufacture of PVC and aluminum window and door, and undertook the key brainstorm project of the Ministry of Construction - PVC window CIMS (Computer Integrated Manufacturing System), leading the trend of the technology development of window and door fabrication system in China.
There are more than 30 marketing/service organizations all over China which can serve our customers with complete sincerity and offer periodic training in the dense area to the customers. We are the first company to offer online diagnosis service at present.
Our company has been evaluated to be Deputy Director Enterprise in the PVC window and door product Specialty Committee of China Plastic Processing Industry Association, The Top 100 Company in the Construction Machinery Industry in Shandong Province etc. Our products have been listed in State Torch Plan by the National Science and Technology Ministry.
