Quick Details
Description
- Condition:New
- Application:Profile
- Plastic Processed:WPC
- Screw Design:Double-screw
- Automatic Grade:Automatic
- Place of Origin:Jiangsu, China (Mainland)
- Brand Name:camel PVC Window and Door Profile Extrusion Line
- Model Number:CMLM180
- Voltage:380v \50hz\3phase
- Power(W):37kw
- Dimension(L*W*H):24X3X3m
- Weight:10T
- Certification:CE ISO9001
- After-sales Service Provided:Engineers available to service machinery overseas
- Name:PVC Window and Door Profile Extrusion Line
- Raw material:PVC Resins+CaCo3
- Machine color:Custmer's Requirement
- Extruder model:SJZ51/105 or SJZ55/110
- Temperature controller:Omron Brand
- Inverter:ABB Brand
- Max output(kg/h):100/150
- Warranty:1 Year
- Drive motor power(kw):18.5/22
- Max wide(mm):180

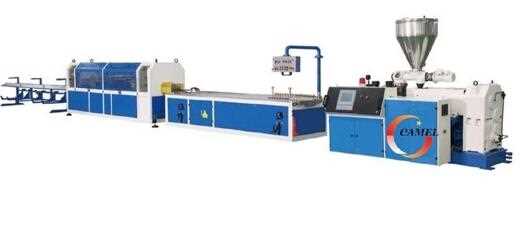

PVC Window and Door Profile Extrusion Line
The pvc windows line is mainly used for producing various sizes of PVC profiles, pvc cable trunking, ceiling panel, window sill, WPC decking, WPC flooring and other shaped profiles.
Normal pvc windows line is composed of extruder, mould, vacuum calibration table, haul-off and cutter, stacker. With different mould, PVC profile machine can produce PVC products with different shapes, Mould designed by different kinds of profile customer required.
Features for PVC Window and Door Profile Extrusion Line:
* PLC control system is available
* All electrical components adopts famous brand : OMRON, ABB, SIEMENS etc
* Over current protective of motor
* With online protection film wrapping device
Machine Configuration for PVC Window and Door Profile Extrusion Line:
|
No
|
Unit machine
|
unit
|
|
1
|
Powder Charger (for extruder)
|
1set
|
|
2
|
Conical Twin Screw Extruder
|
1set
|
|
3
|
Vacuum calibrating machine
|
1set
|
|
4
|
Haul off machine together with cutter
|
1set
|
|
5
|
Stacker
|
1set
|
|
6
|
Mold (according to the drawing )
|
|
|
7
|
Control cabinet
|
Included
|
|
8
|
Spare parts
|
Free /set
|
Auxiliary machines of PVC Window and Door Profile Extrusion Line:
1.Mixing unitAuxiliary machines:
2.Crusher and milling machine
3.Chiller and air compressor etc
Process flow of PVC Window and Door Profile Extrusion Line:
Raw material +wood power+ additive → mixing → conical twin-screw extruder → profile extrusion mould → cool molding die → vacuum calibration support → belt haul-off → cutter → rack → finished product inspecting & packing
Technical data of PVC Window and Door Profile Extrusion Line:
|
Model
|
Max wide(mm)
|
Extruder model
|
Max output(kg/h)
|
Drive motor power(kw)
|
|
CMLM108
|
108
|
SJZ51/105
|
100
|
18.5
|
|
CMLM180
|
180
|
SJZ51/105 or SJZ55/110
|
100/150
|
18.5/22
|
|
CMLM240
|
240
|
SJZ65/132
|
250
|
37
|
|
CMLM300
|
300
|
SJZ65/132
|
250
|
37
|
|
CMLM400
|
400
|
SJZ80/156
|
350
|
55
|
|
CMLMC500
|
500
|
SJZ80/156
|
350
|
55
|
|
CMLM600
|
600
|
SJZ80/156
|
400
|
75
|
Zhangjiagang Camel Machinery Co., Ltd(CM) is one of professional manufacturers for plastic extrusion and recycling equipment in China. With over 10 years experience, more than 3000 installations and presence in more than 50 countries in Americas, Middle East, Asia and Africa, CM enjoys important position in the extrusion and recycling market in China. CM aim is to be a top plastic equipment supplier in the world, base on the spirit of this principle, we are not only made our best to meet the market demand but also enhance innovative ability. Company R & D team can provide the latest technology to meet the various needs of customers.
Camel offers following major product lines as following:
PVC/PE/PPR/PP pipe extrusion line
PVC garden hose/spiral hose/steel wire reinforced hose extrusion line
WPC decking extrusion line
PET bottle recycling line
PE/PP film recycling line
Strategic Target:
Provide the best quality products with the reasonable price. Perfect technical solutions and quick after sale service
Company philosophy:
Quality derive from profession, Success derive from innovation.
Company motto:
Integrity wins the world
