Quick Details
Description
- Condition:New
- Application:Profile
- Plastic Processed:PVC
- Screw Design:Double-screw
- Automatic Grade:Automatic
- Place of Origin:Jiangsu, China (Mainland)
- Brand Name:CAMEL
- Model Number:CMLM
- Voltage:380V 50HZ 3Phase(Customized)
- Power(W):18.5-120kw
- Dimension(L*W*H):20mx2.5mx2.2m
- Weight:5-18T
- Certification:CE ISO9001
- After-sales Service Provided:Engineers available to service machinery overseas

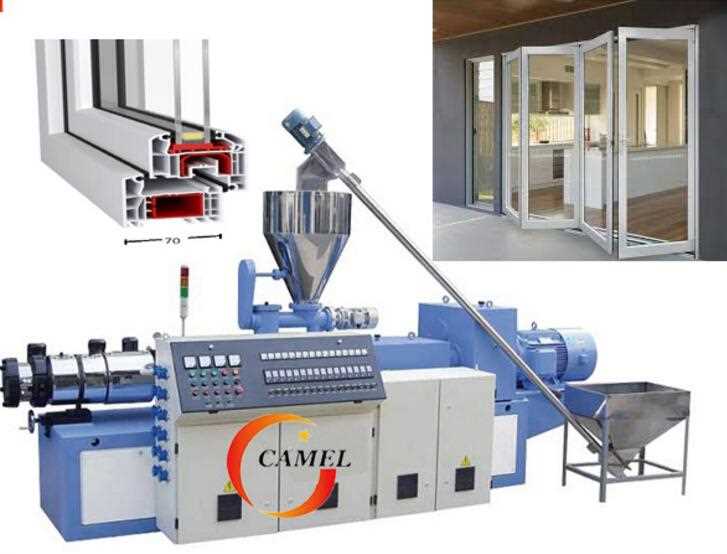

- Name:High Quality PVC Window and Door Profile Making Machine
- Color:Customised
- Inverter:ABB(customised)
- Warranty:1 Year
- Motor:Siemens Beide(customised)
- Temperature controller:OMRON RKC(customised)
- Control:PLC(customised)
- Product Type:Pvc Profile
- Max output:100-400kg/h
- Range of profile:Width less than 600mm
The pvc windows line is mainly used for producing various sizes of PVC profiles, pvc cable trunking, ceiling panel, window sill, WPC decking, WPC flooring and other shaped profiles.
Normal pvc windows line is composed of extruder, mould, vacuum calibration table, haul-off and cutter, stacker. With different mould, PVC profile machine can produce PVC products with different shapes, Mould designed by different kinds of profile customer required.
Features for pvc windows line:
* PLC control system is available
* All electrical components adopts famous brand : OMRON, ABB, SIEMENS etc
* Over current protective of motor
* With online protection film wrapping device
Machine Configuration for pvc windows line:
|
No
|
Unit machine
|
unit
|
|
1
|
Powder Charger (for extruder)
|
1set
|
|
2
|
Conical Twin Screw Extruder
|
1set
|
|
3
|
Vacuum calibrating machine
|
1set
|
|
4
|
Haul off machine together with cutter
|
1set
|
|
5
|
Stacker
|
1set
|
|
6
|
Mold (according to the drawing )
|
|
|
7
|
Control cabinet
|
Included
|
|
8
|
Spare parts
|
Free /set
|
Auxiliary machines:
1.Mixing unit
2.Crusher and milling machine
3.Chiller and air compressor etc
Process flow:
Raw material +wood power+ additive → mixing → conical twin-screw extruder → profile extrusion mould → cool molding die → vacuum calibration support → belt haul-off → cutter → rack → finished product inspecting & packing
Technical data:
|
Model
|
Max wide(mm)
|
Extruder model
|
Max output(kg/h)
|
Drive motor power(kw)
|
|
CMLM108
|
108
|
SJZ51/105
|
100
|
18.5
|
|
CMLM180
|
180
|
SJZ51/105 or SJZ55/110
|
100/150
|
18.5/22
|
|
CMLM240
|
240
|
SJZ65/132
|
250
|
37
|
|
CMLM300
|
300
|
SJZ65/132
|
250
|
37
|
|
CMLM400
|
400
|
SJZ80/156
|
350
|
55
|
|
CMLMC500
|
500
|
SJZ80/156
|
350
|
55
|
|
CMLM600
|
600
|
SJZ80/156
|
400
|
75
|
