Quick Details
Description
- Type: Other
- Condition: New
- Application: Chemical, Commodity, Food, Machinery & Hardware, Medical
- Packaging Type: Cartons, Case
- Packaging Material: Paper
- Automatic Grade: Automatic
- Driven Type: Electric
- Voltage: 380V 50Hz
- Power: 1.5KW
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: Pharma
- Model Number: GZ
- Weight: 1200kg
- Dimension(L*W*H): 3100*1350*1450mm
- Certification: ISO
- After-sales Service Provided: Engineers available to service machinery overseas
- Model: ZH-100
- Power supply: AC 380V 50Hz Triphase 4 lines
- Capacity: 30-100 Box/min
- Air consumption: 20m3/h (pressure 0.5-0.7mpa)
- Total power: 1.5kw
- Folder speed: 30-100 Box/min
- Carton max. size: 200x120x70mm
- Carton min. size: 70x30x15mm
- Operation manual max. size:250x190mm(L*W)
- Operation manual min. size:100x100mm(L*W)
Overview

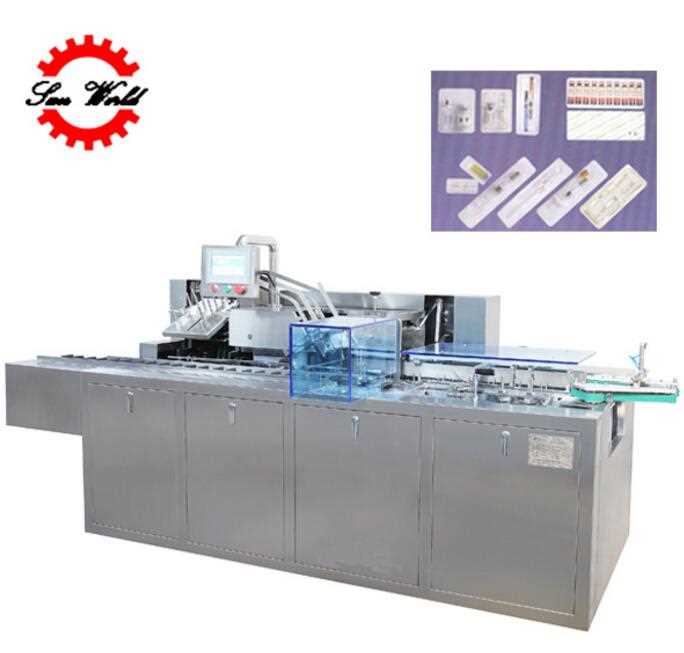

ZH-100 Automatic Cartoning machine applies to the encase packing of blisters, vials, cosmetics, poker and similar stuff. This machine can fold leaflet, open carton and insert stuff with leaflet into cartons, printing batch number and close carton automatically.
This machine adopts horizontal configuration, PLC control system, photocell detector installed in each station enables stable running. If there is anything wrong with the machine, it can stop automatically and display the troubles so as to solve them in due time. The machine can be singly used or linked with blister packing machine to form a production line.
Features
1,Stop automatically if the packed product does not go to the right position;
2,Stop automatically if there is no carton, continues lack of instruction manual or no product;
3,It is convenient to change different specification;
4,Overloading protecting for main drive;
5,PLC will automatically display the speed and count the finished product;
6,PLC will automatically display trouble, stop the machine and alarm, and display the operation and maintaining ways;
7,Automatically eliminate the plate that lacks of packed matter or operation manual.
|
Power supply
|
AC 380V 50Hz Triphase 4 lines
|
|
Total power
|
1.5kw
|
|
Capacity
|
30-100 Box/min
|
|
Folder speed
|
30-100 Box/min
|
|
Air consumption
|
20m3/h (pressure 0.5-0.7mpa)
|
|
Packing material
|
Carton
|
Weight: 250-350g/m2
|
|
Max. size: 200x120x70mm
|
|
Min. size: 70x30x15mm
|
|
Operation manual
|
Paper weight : 55-65g/m2
|
|
Max. size: 250x190mm(L×W)
|
|
Min. size: 100x100mm(L×W)
|
|
Overall dimension
|
3100×1350×1450 (L×W×H)
|
|
Weight
|
1200kg
|
Our company is located in the beautiful seashore city, Qinhuangdao and is specialized in manufacturing pharmaceutical machinery and packing machinery. With an experienced and professional team, we have exported our products to many countries and regions all over the world, especially in North American countries and France, the Netherlands, Australia, India, Pakistan, Russia and many other countries and regions. Our products enjoy a good reputation among our customers. We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
