Quick Details
Description

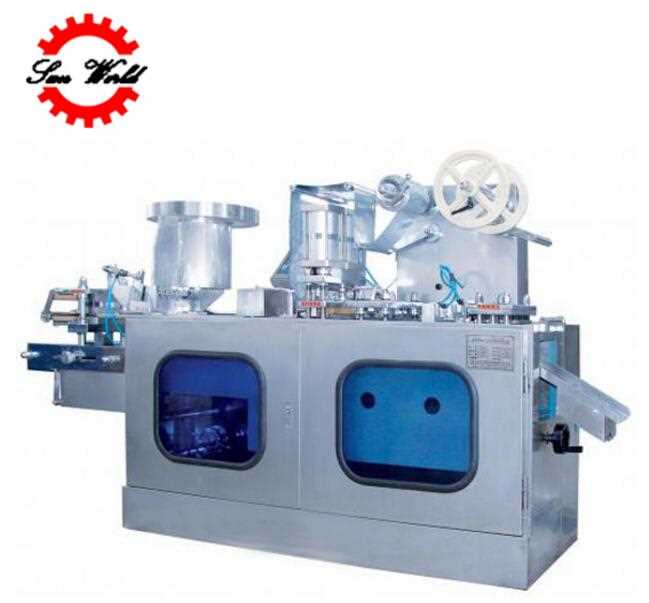

- Type: Blister Packaging Machine
- Condition: New
- Application: Chemical, Commodity, Food, Machinery & Hardware, Medical
- Automatic Grade: Automatic
- Driven Type: Electric
- Voltage: 380V 50HZ
- Power: 3.6kw
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: Pharma
- Model Number: DPP-80B
- Dimension(L*W*H): 2300*560*1410mm
- Weight: 750kg
- Certification: CE ISO
- Warranty: 1 Year
- After-sales Service Provided: Engineers available to service machinery overseas
- Model: DPP 80B
- Max.Forming Area And Depth: AL-AL:130*120*14mm AL-plastic:130*120*26mm
- Travel Range: 40-130mm
- Max.Production Capacity: AL-AL:≤4500pcs/h AL-plastic:≤11000pcs/h
- Air Pressure: 0.4-0.6Mpa
- Air Supply: ≥0.2m3/min
- Total Power: 380V/220 50Hz
- Forming Aluminum: 0.1-0.15*140mm
- PVC Sheet: 0.25-0.5*140mm
- PTP Aluminum Foil: 0.02-0.035*140mm
Overview
The machine is the latest product in our company adopting PLC, frequency converter, and man-machine interface. It can check online and eliminate the waste plate by itself. In accordance with GMP rule requirement, it is an ideal blister packing machine for aluminum-aluminum, aluminum-plastic, paper plastic packing. And it has got high popularity. The products have been appraised as the provincial science and technology accomplishments.
Features
1. Equipped with fiber-optic or inductive checking mechanism, which can eliminate by itself the waste plate with lack of tablet or other packed material, with recovery rate of 100%.
2. Main transmission part adopts parallel axis and bevel wheel speed reducer, with novel structure, stable running, low noise and long service life.
3. Forming mould, hot-sealing mould and pressing mould adopt bolt orientation, with exact orientation, easy to change moulds and material saving.
4. Heat-sealing station fixed, forming, pressing and cutting spare parts can move freely to adjust the distance and easy to change moulds.
5. Manipulator towing, adjustable travel range, it can be suited for blister packing of various sizes. Flat plate structure can pack special shape products, such as: elliptic shape, square shape, triangle shape etc.
|
Model
|
DPP-140B
|
DPP-80B
|
|
Cutting Frequency
|
AL-AL:6-25Times/min
AL-plastic,Paper-plastic:
6-50Times/min
|
AL-AL:6-20Times/min
AL-plastic,Paper-plastic:
10-40Times/min
|
|
Max.Production Capacity
|
AL-AL:≤4500pcs/h
AL-plastic:≤11000pcs/h
|
AL-AL:≤15000pcs/h
AL-plastic:≤24000pcs/h
|
|
Max.Forming Area
And Depth
|
AL-AL:130*120*14mm
AL-plastic:130*120*26mm
|
AL-AL:70*90*15mm
AL-plastic:100*80*15mm
|
|
Travel Range
|
40-130mm
|
40-80mm
|
|
Standard plate
|
80*57mm(Can be manufactured as user's requirements)
|
|
Air Pressure
|
0.4-0.6Mpa
|
|
Air Supply
|
≥0.2m3/min
|
|
Total Power
|
380V/220 50Hz 3.6kw
|
380V/220 50Hz 3.5kw
|
|
Main Motor Power
|
0.75kw
|
0.55kw
|
|
Forming Aluminum
|
0.1-0.15*140mm
|
0.1-0.15*100mm
|
|
PVC Sheet
|
0.25-0.5*140mm
|
0.25-0.5*100mm
|
|
PTP Aluminum Foil
|
0.02-0.035*140mm
|
0.02-0.035*100mm
|
|
Dialysis Paper
|
50-100g*140mm
|
50-100g*100mm
|
|
Mould Cooling
|
Tap water of circulating water
|
|
Overall Dimensions(L*W*H)
|
2300*560*1410mm
|
1400*460*950mm
|
|
Weight
|
750kg
|
450kg
|
