Quick Details
Description
- Condition:New
- Place of Origin:Beijing, China (Mainland)
- Brand Name:NewJackson
- Model Number:NJ-SHZ4-4500
- Voltage:380v/50hz
- Rated Power:4.5kw
- Dimension(L*W*H):5300*900*1750mm
- Weight:1500kgs
- Certification:CE ISO
- Warranty:1 year
- After-sales Service Provided:Engineers available to service machinery overseas
- Air pressure:0.5-0.8MPa
- Air consumption:200L/min
- Welding profile height:120mm
- Max welding profile width:300*300~1800*3000mm
- Welding length:400-4500mm

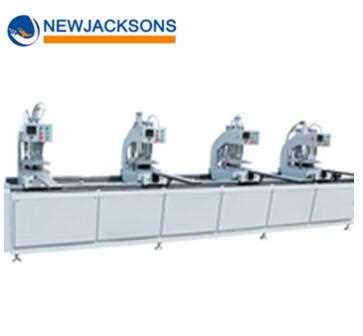

--It is used for white profile and colored profile corner welding. It can achieve the corner welding, such as: . The welding process will be finished automatically after the operator puts on the profile and presses the automatic running button.
--Welding seam adjustable between 0.2mm and 2mm.
--Adopt high accuracy Round guide linear motion pair. Precise parts and strictly assembling process makes it has high stability.
--Cylinder, solenoid valves PLC and low-voltage electric components and pneumatic components etc. Are all selected strictly, which ensured high reliability.
--Rigid grasp structure is adopted to the profile positioning system, which could strictly guarantee welding loss and high welding accuracy.
--High welding corner strength and small fluctuation range, strict conforming with the European standard.
--Guarantee good appearance when welding the colored profile.
--Special for produce high grade window and doors.
NewJackson was founded in 2002, since the entry into the window door curtain wall machinery manufacturing field, NEWJACKSON with the best team and most stringent manufacturing standards, has been committed to the global supply of machinery and the best service. Today, with more than 300 employees.
We exports to the world more than 50 countries and regions, and has firstly established branches in USA, India, UAE, Brazil ,has 50 patents. NEWJACKSON products include aluminum, PVC windows and doors machinery, aluminum curtain wall processing machinery, industrial aluminum processing machinery and insulating glass series production line machinery. NEWJACKSON machinery are all passed through high standard European CE certification, American UL certification and Canadian CSA certification.
Our machines' core parts procurement achieved internationalization, and established a cooperative partnership with ABB, Omron, Schneider, Optima. NEWJACKSON people are always follow the core concept ,it is "NEWJACKSON is developing with the world", it is NEWJACKSON peoples' strict implementation of ecological system of NEWJACKSONand of "zero defect" stern pursuit, which makes the NEWJACKSON machine perfect implement unique global standard, achieves improvement value and sustainable innovation!
NEWJACKSON machinery, leads the era of intelligence, create the strategy of globalization!
NEWJACKSON machinery, contribution to the world culture of windows and doors !
