Quick Details
Description
- Condition:New
- Place of Origin:Beijing, China (Mainland)
- Brand Name:NewJackson
- Model Number:NJ-BLYTJ-1800
- Voltage:380V 50HZ
- Rated Power:1.1(Kw)
- Dimension(L*W*H):1500*750*1500 mm For GBS1800; 2500*138*1300 mm For GBST1800
- Weight:250(kg) for GBS1800; 400kg for GBST180
- Certification:CE ISO
- Warranty:1 year
- After-sales Service Provided:Engineers available to service machinery overseas
- Operation air pressure:0.5~0.8(MPa)
- Air consumption:20(L/min)
- Cutting Height:33(mm)
- Cutting Width:100(mm)
- Cutting Length:320-1800(mm)
Performance and Feature

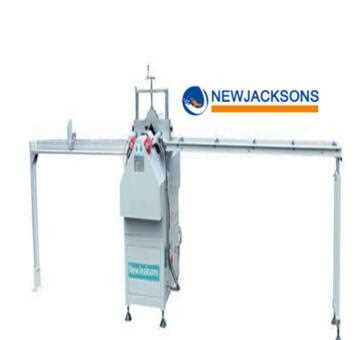

Feature of glazing bead saw
--For 45°glass batten cutting.
--One time two pieces of glass batten cutting.
--Adjustable mould lessens the error of angle cutting.
y ensure the precision of the position, but also can apply to clamping of different profiles.
--Safeguard covers on both cutting heads can protect the operators.
--The rail of machine motion and feeding heads for cutting adopt the linear bearing motion pair
--Reasonable structure and precise processing of whole machine is for high precision of finished product.
--CNC control with auto length stop ,high automation
--Automatic compensation of cutting dimension, high precision of re-positioning.
--With high cutting precision and efficiency, it’s the ideal option for high-grade PVC window and door fabrication.
--Can communicate data with PC, download software and create processing programs/data, realize CAD/CAPP/CAM.
