Quick Details
Description
- Type: Filling Machine, olive oil lube oil cooking oil filling machine
- Condition: New
- Application: Beverage, Chemical, Commodity, olive oil lube oil cooking oil filling machine
- Packaging Type: Bottles, olive oil lube oil cooking oil filling machine
- Packaging Material: Plastic, olive oil lube oil cooking oil filling machine
- Automatic Grade: Automatic
- Driven Type: Electric
- Voltage: 110V/220/380V
- Power: 2500W
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: Mic Machinery
- Model Number: MIC-L5L-4
- Dimension(L*W*H): 600*1150x*2300
- Weight: 4500kg, ≤600KG
- Certification: CE, GSG
- After-sales Service Provided: Engineers available to service machinery overseas
- Model: MIC-L5L-4
- Heads of Filling: 4
- Production Capacity: (based on 5L) 1000BPH
- Suitable Bottle Diameter (mm): Min 60*60*100mm Max 140*200*340mm 1-5L
- Measure Precision: ±1%
- Compressed Air Pressure: 0.6-0.8Mpa
- Motor Power: ≤2.5KW
- Overall Dimension: (L*W*H) (mm) 600*1150x*2300

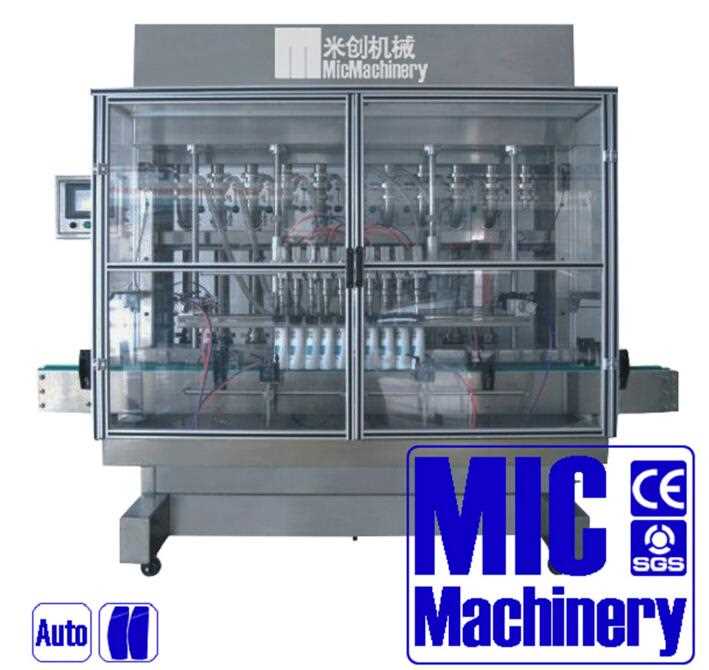

Description of honey filling machine olive oil filling machine for 1500-2000bottle per hour CE approvedolive oil lube oil cooking oil filling machine descrition:
this machine is piston controled filling machine (servo motor control is optional) for the various liquid, such as: oil viscosity, cream products, paste products, any liquid which can flow by gravity or viscosity is less than 50000cps. machine is made from SUS304 or SUS 316, food / medicine class machine, it matches GMP standard. we are waiting for your kind require.
machine is plunger type filler driven by servo motor, use PLC programmable logic controller. Match with 5.4" color touch screen man-machine interface system, implement automatic bottle feeding and variable speed (adjustable) filling, automatic bottle transportation. Can change filling head numbers based on customer requirements.
Accurate measurement:
Adopt servo system to ensure piston's motion stroke to achieve high precision.
Variable speed filling:
In the process of filling when volume is close to the target, can apply variable speed, filling to realize low speed filling, to prevent the liquid overflow bottle mouth causing pollution.
Convenient adjustment:
Replace filling specification only need to change parameters on the touch screen, and the filling head change in position one Time.
|
Model
|
MIC-L5L-4
|
MIC-L5L-6
|
MIC-L5L-8
|
|
Heads of Filling
|
4
|
6
|
8
|
|
Production Capacity
(based on 100ml)
|
≤1000BPH
|
≤1500BPH
|
≤2000BPH
|
|
Suitable Bottle Diameter (mm)
|
20-65mm
H=180mm 20-120ml
|
|
Measure Precision
|
±1%
|
|
Compressed Air Pressure
|
0.6-0.8Mpa
|
|
Motor Power
|
≤2.5KW
|
|
Overall Dimension
(L*W*H) (mm)
|
600*800x*1900
|
800*800*1900
|
1000*800*1900
|
|
Weight
|
≤600KG
|
|
Remark
|
We supply customized service
|
