Quick Details
Description
- Type: Filling Machine
- Condition: New
- Application: Chemical, Medical, small bottle filling and capping machine
- Packaging Type: Bottles, small bottle filling and capping machine
- Packaging Material: Glass, Plastic, small bottle filling and capping machine
- Automatic Grade: Automatic
- Driven Type: Electric
- Voltage: 380V
- Power: 2KW
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: MIC
- Model Number: MIC-L45
- Dimension(L*W*H): 2000*1000*1500
- Weight: 600kg
- Certification: CE ISO
- After-sales Service Provided: Engineers available to service machinery overseas
- Name: small bottle filling and capping machine
- Material: Stainless Steel 304
- Usage: Filling Material
- Function: Bottle filling and capping
- Filling speed: 30-50 Bottles/min
- Filling volume: 5-200ml
- Filling type: Under Pressure Filling
- Filling head: 4 Heads
- Delivery package: Wooden boxes
- Warranty: Long Time Service
Product introduction

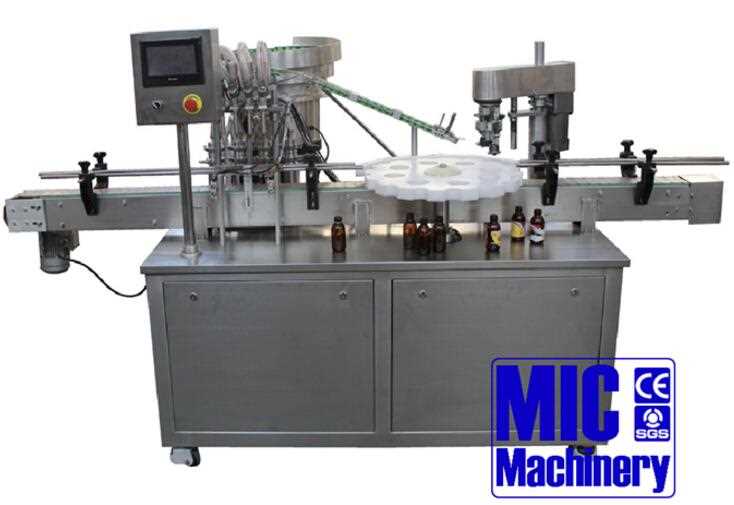

It is a traditional and hot sale series filling and sealing machine of our company, the high quality liquid filling machine main for 25-80 various round and flat, plastic,alumiun or glass bottles.Fillling with plate positional, no bottle no filling.Touch screen and dust proof cover is optional. The machine enjors high position accuracy, stable driving,precise dosage, and simple operation and also protects bottle caps.
Characteristic:
1. Human-machine interface settings, an easy and intuitive, PLC control.
2. Frequency control, the production rate be adjusted automatically count.
3. No bottle no filling.
4. High-precision cam meter control, precise positioning.
5. SUS304 and 316L stainless steel
Main parameter
|
Model
|
MIC-L45
|
|
Filling volume
|
25-80 ML (As requirement)
|
|
Filling nozzle
|
4 nozzles
|
|
loading error
|
≤ ±1%
|
|
Rotation (rolling) Cover pass rate
|
≥99%
|
|
Production capacity
|
30-50BPM
|
|
Power supply
|
380V/50Hz(According to customer)
|
|
Power
|
2.0 kw
|
|
Weight
|
600 kg
|
|
Dimension
|
2000*1000*1500mm
|
Company introduction: Our company (Micmachinery) was found in 1999. In 2014, the management board rebuilt it, and after reconstruction, Micmachinery.Co.,Ltd became a factory with export department.
we have 2 factories for bevereage filling machine and cosmetic filling machine
one in Zhangjiagang, one in Changzhou, Hangzhou was export department regist place, we are now in changzhou and Zhangjiang factories.
