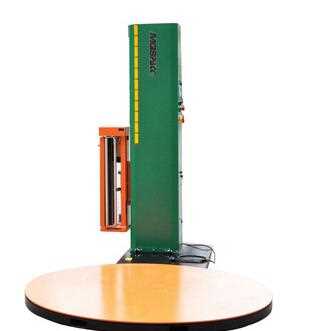

MP206 NEW TYPE Integrated weighting and wrapping machine
Stretch wrapping machines are used to wrap stretch film around a loaded pallet. Film provides extra support during transportation and storage to protect them from dust, moisture or damage. It’s been widely used in industries such as glassware, tools, electric & electronic, paper, pottery, food & beverage, etc.
Quick Details
Description
- Type: Wrapping Machine
- Condition: New
- Application: Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware
- Packaging Type: Cartons
- Packaging Material: Plastic
- Automatic Grade: Semi-Automatic
- Driven Type: Electric
- Voltage: 220V 50/60Hz
- Power: 1.5KW
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: MQS
- Model Number: MP206
- Dimension(L*W*H): 2565*15002535
- Weight: 700KG
- Certification: CE ISO9001
- After-sales Service Provided: Engineers available to service machinery overseas
- control mode: PLC+HMI control
- Turntable speed: 0~15rpm/min
- carriage mode: Powered pre-stretch
- Max pallet size: 1200L*1000W
- Max wrapper height: 2100mm
- turntable diameter:1500mm/1650mm/1800mm
- pre-stretch rario: 300%
- braker mode: DC brake
Specifications
Integrated weighting and wrapping machine
Professional manufacturers
Efficient and low cost
reasonable price
CE & ISO9001
Key Words:
semi-auto strech wrapping machine, pallet wrapper, semi-auto stretch wrapper, pallet wrapping machine, stretch pallet wrapper, stretch wrapping equipment
Proudct Introduction:
Stretch wrapping machines are used to wrap stretch film around a loaded pallet. Film provides extra support during transportation and storage to protect them from dust, moisture or damage. It’s been widely used in industries such as glassware, tools, electric & electronic, paper, pottery, food & beverage, etc.
Product Features:
*Powered pre-stretch film carriage, ratio 250%.
*Dual chain structure column, carriage speed vairable.
*Automatic wrapping according to pre-set parameters. Friendly user interface for setting wrap
cycles,top/bottom cycles & film tension. Manual wrap mode as an option.
*Auto height detection, turntable home position, forklift sockets for easy moving.
*Dual limit switches on top & bottom to provide better safety protections.
Product Specifications:
|
Main parameters
|
|
Turntable diameter
|
1500mm, optional 1650mm, 1800mm
|
|
Wrapping Height
|
2100mm, optional 2400, 2600mm
|
|
Loading Weight
|
2000kg
|
|
Packing Speed
|
20-40 per hour
|
|
Turntable Speed
|
150rpm, speed variable
turntable soft start & soft sotp
|
|
Turntable Height
|
82mm
|
|
Carriage Speed
|
3m/min
|
|
Control
|
PLC+inverter
|
|
Working Mode
|
auto/manual
|
|
Power
|
1PH220VAC, 50/60Hz, 20A, 1.35Kw
|
|
Dimensions
|
2565*1500 *2535mm
|
|
Machine Weight
|
700kg
|
Shenzhen MEIQISI Packaging and Material Co., Ltd. was established in 1998, and now we beome one of China's major manufacturer of high quality and economic material handling equipments.
Our products ranges include all types of semi-auto and full automatic stretch wrapping machines, material conveying equipments, carton erectors and sealers, strappers, pallet dispensers and palletizers. With a strong technical team and experienced workers, we are also experts in workshop & warehouse material handing solution planning - Our experience and diverse knowledge of packaging machinery and handling enables us to provide perfect sulotions to meet specific requirements with different industries.
Strictly abide by ISO9001:2000 Quality Management System and CE standards, our products stand for quality, reliability, continuous improvements, and higher safety standards, and win recognition of customers from domestic and abroad.
Looking forward, we will continue to take efforts in product innovation, quality and customer satisfaction, and aiming to become first rate global supplier in material handling industry.
Located in Bao'an District of Shenzhen, we are 20 minutes drive from the airport, and one hour from sea port. Welcome to visit us, and let's work together for better automation.
