Quick Details
Description
- Brand Name:
-
CCI

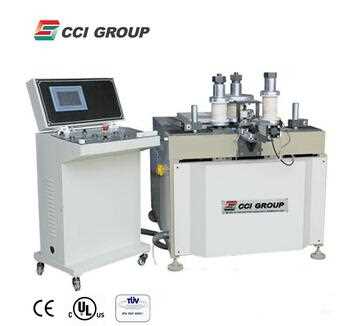

- Model Number:LWY-CNC-200
- Application:aluminium door and window making machine
- Shaped:C, U, OVAL, Road type and so on
- Minimum bending arch diameter:500mm
- Maximum wheel mould diameter:200mm
- Power supply:380V 50Hz
- Overall dimension:1200mm*1100mm*1100mm
- Weight:1000Kg
- Motor power:3Kw
- Rated oil pump pressure:20 Mpa
- Wheel shaft diameter:80mm
Function:
This aluminium door and window making machine is used for aluminum profile auto hydraulic bending work.
LWY-CNC-200 adopts DELTA control system, which can ensure the high quality bending precision.
It Uses imported control system and oil pressure control system, which can keep the location precision.
It can bend C, U, OVAL, Road type and so on.
When bending, it is no damage of profile surface.
This model aluminium door and window making machine is up to international advanced level.
aluminium door and window making machine Technical Parameters
|
Series No
|
Technical Item
|
Technical Parameters
|
|
1
|
Power Supply
|
380V 50Hz
|
|
2
|
Power Rate
|
3Kw
|
|
3
|
Rated Oil Pump Pressure
|
20Mpa
|
|
4
|
Min. Bending Arch Diameter
|
500mm
|
|
5
|
Max. Wheel Mould Diameter
|
200mm
|
|
6
|
Wheel Shaft Diameter
|
80mm
|
|
7
|
Overall Dimension
|
1200*1100*1100mm
|
|
8
|
Weight
|
1000Kg
|
As a path breaker in windoor machines of China, CCI Group Machine creates and develops the brand-new high quality window machines and Insulating Glass Machines with 23 years hard working. Our aim is the best windoor machines and insulating glass machines manufuctuer from China.
Attaching much importance to quality and taking management and technology development as the impetus, CCI Group tacks the culture of operation excellence, and has obtained ISO9001-2000 edition and CE Qualification successively. So far CCI Group has more than thirty offices around China, and has built many a foreign office, such as in Canada, Kazakstan etc.
Now CCI Group has become the all-around equipment manufacturer, producing more than one hundred products, and is mainly engaged in four series of equipment processing PVC windoor, top grade aluminum windoor and curtain wall, insulating glass and iron-PVC win door.
We would like to expand our cordial cooperation with you for better future.
