Quick Details
Description
- Condition:New
- Place of Origin:Shandong, China (Mainland)
- Brand Name:CCI
- Model Number:LJZ2-500X4200B
- Voltage:380V/220V
- Rated Power:2*2.2KW
- Dimension(L*W*H):5300*1200*1600mm
- Weight:1800kg
- Certification:CE ISO
- Warranty:24 Months
- After-sales Service Provided:Engineers available to service machinery overseas

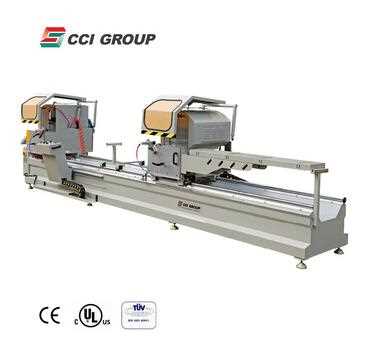

- Name:Aluminum Alloy Precise Double Miter Saw for making upvc window
- Usage:double mitre saw for cutting pvc or upvc profiles
- Double Mitre Saw PLC System:DELTA/MITSUBISHI CNC
- Electric Parts:Schneider
- Saw Blade Origin:Germany
- Saw blade dimension:500*4.4*30*Z120
- Cutting angle:90 45
- Cutting length:Max 4200mm Min400mm
- Cutting width:MAX 140mm
- Cutting height:MAX 300mm
function:
This door and window making machine is the double mitre saw which is used for not only aluminum profile cutting, but also corner connector cutting.
The two-way location-and-clamping feature high precision and steadiness.
Auto-opening guard shield ensured safety operation.
Uniform sped feeding and smooth motion due to air-Hydraulic damping cylinder.
The Schneider Electric Parts and Easun Pneumatic Parts are installed on this cnc double mitre saw.
Saw blade rotate smoothly due to high accuracy main spindle.
Imported linear bearing motion pair ensured steady processing accuracy.
Imported carbide saw blade give accurate processing and high endurance.
45°and 90°cutting is available. 22.5° is optional angle.
Adopted DELTA CNC technique, can achieve various profile auto cutting off.
Adopted high helical pitch ball screw-lead motion, with high accurate driving, locating and smooth working.
Feeding system adopts imported linear guide pair, with high accuracy and long service life.
The cnc double mitre saw is suitable for batch production.
Aluminum Alloy Precise Double Miter Saw for UPVC Window Making Machine
|
Series No.
|
Techncial Item
|
Technical Parameters
|
|
1
|
Power Supply
|
380V 50Hz 2*2.2Kw
|
|
2
|
Air Pressure
|
0.5-0.8Mpa
|
|
3
|
Saw Blade Specification
|
500*30mm
|
|
4
|
Saw Blade Rotation Speed
|
2800RPM
|
|
5
|
Cutting Scope
|
400-4200mm
|
|
6
|
Cutting Angle
|
45 degree/ 90 degree
|
|
7
|
Overall Dimension
|
5300*1200*1600mm
|
|
8
|
Total Weight
|
1800Kg
|
As a path breaker in windoor machines of China, CCI Group Machine creates and develops the brand-new high quality window machines and Insulating Glass Machines with 23 years hard working. Our aim is the best windoor machines and insulating glass machines manufuctuer from China.
Attaching much importance to quality and taking management and technology development as the impetus, CCI Group tacks the culture of operation excellence, and has obtained ISO9001-2000 edition and CE Qualification successively. So far CCI Group has more than thirty offices around China, and has built many a foreign office, such as in Canada, Kazakstan etc.
Now CCI Group has become the all-around equipment manufacturer, producing more than one hundred products, and is mainly engaged in four series of equipment processing PVC windoor, top grade aluminum windoor and curtain wall, insulating glass and iron-PVC win door.
We would like to expand our cordial cooperation with you for better future.
