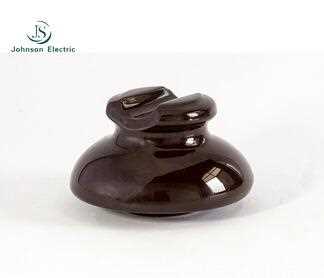

• ISO9001 90KV 55-3 low voltage pin porcelain insulator

ISO9001 90KV 55-3 low voltage pin porcelain insulator

Puncture Voltage: 90KV; Cantilever Strength: 11KN; Certification: ISO9001; MOQ: 200pcs; Standard: ASNI;

Product Details

Quick Details

Description

  • Place of Origin: Jiangxi, China (Mainland)
  • Brand Name: JS
  • Model Number: 55-3 pin insulator
  • Type: Insulator
  • Material: Porcelain
  • Application: Low Voltage
  • Rated Voltage: 11KV
  • Tensile Strength: -
  • Color: White/Brown
  • Creepage Distance: 178mm
  • Puncture Voltage: 90KV
  • Cantilever Strength: 11KN
  • Certification: ISO9001
  • MOQ: 200pcs
  • Standard: ASNI



 Cat.No

QS11379

Class ANSI

55-3

 Creepage Distance(mm)

178

Dry Arcing Distance(mm)

114

Cantilever Strength(KN)

11

Low Frequency Dry Flashover Voltage(KV)

56

Low Frequency Wet Flashover Voltage(KV)

30

 Critical Impulse Flashover Positive(KV)

90

Critical Impulse Flashover Negative(KV)

110

 Power-frequency Puncture Voltage(KV)

90

Test Voltage to ground(KV)

10

Maximum RIV at 1000KHz(uV)

50

Net Weight Each Approx(KG)

1

Number in standard package

30

ISO9001 90KV 55-3 low voltage pin porcelain insulator

Company Profile

Basic overview of the company:
The company is located in the largest porcelain production base in China - Pingxiang City, the registered capital of the company is CNY30.78 million.
Shareholders of the company:
The company was established by Pingxiang East China Export Electric Porcelain Co., Ltd, Pingxiang City Huakun Electric Porcelain Manufacturing Co., Ltd, Pingxiang Qiangsheng Electric Porcelain Manufacturing Co., Ltd and Zhuoshang Enterprise Management Co.,Ltd. These four companies integrated their advantageous resources and inject them into Jiangxi Johnson Electric.
Main business of the company:
The main products and services of the company include porcelain insulators, industrial ceramics, mechanical equipment, metallic material, power transmission(transformation) equipment and accessories, high voltage power distribution service and technical consultation, domestic and foreign trade.
Enterprise culture:
Company core value: focus on foreign trade, service attentively!
Company future expectation: We'd like Johnson Electric China(pingxiang) to be famous all over the world.
Company three years' plan:
Output value of 2017 reaches to CNY20 million.
Output value of 2018 reaches to CNY30 million.
Output value of 2019 reaches to CNY50 million.


Since established, Johnson Electric is committed to conquer the international market using its own brand. Based on the advantageous resources of Pingxiang East China Export Electric Porcelain Co., Ltd, Pingxiang City HuaKun Electric Porcelain Manufacturing Co. Ltd and Pingxiang Qiangsheng Electric Porcelain Manufacturing Co., Ltd, using Zhuoshang Enterprise Management Limited as the management platform, with the help of Alibaba International Station and other sales platforms, Johnson Electric would like to start the expedition in the international market with the Pingxiang porcelain products.
