• ISO9001 40KN High Voltage disc suspension porcelain insulators

ISO9001 40KN High Voltage disc suspension porcelain insulators

Rated Voltage: 11KV, 11KV Tensile Strength: 10KN; Certificate: ISO9001,ISO14001,XIHARI,TUV; Standard: ANSI; Color: Brown;

Product Details

Quick Details

Description

  • Place of Origin: Jiangxi, China (Mainland)
  • Brand Name: JS
  • Model Number: 40KN
  • Type: Insulator
  • Material: Porcelain, Porcelain
  • Application: High Voltage
  • Rated Voltage: 11KV, 11KV
  • Tensile Strength: 10KN
  • Certificate: ISO9001,ISO14001,XIHARI,TUV
  • Standard: ANSI
  • Color: Brown



 Cat.No

QS1101

 Type

XP-40C

Class

U40C

Figure No.

1

Unit spacing(H)                                          mm

140

Nominal diameter(D)                                     mm

190

Nominal creepage distance                            mm

200

Rated E&M failing load                            KN

40

Routine tensile load                                  KN

20

Coupling size



Impact strength                                     N.m

5

    Power frequency withstand voltage

 Wet                      KV

30

 Dry                       KV

55

Dry lighting impulse withstand voltage              KV

75

Power frequency puncture voltage                       KV

90

     Radio interference voltage

Test voltage to ground         KV

7.5

1MHz Max. RIV at 1MHz  uV

50

100  Mass per 100pcs                                        KG

250

Applicable standard:  GB  IEC  AS  BS

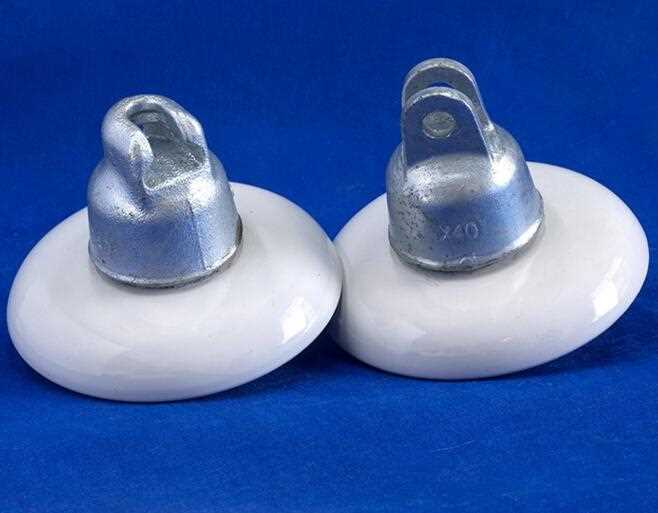

porcelain insulators

Company Profile

Basic overview of the company:
The company is located in the largest porcelain production base in China - Pingxiang City, the registered capital of the company is CNY30.78 million.
Shareholders of the company:
The company was established by Pingxiang East China Export Electric Porcelain Co., Ltd, Pingxiang City Huakun Electric Porcelain Manufacturing Co., Ltd, Pingxiang Qiangsheng Electric Porcelain Manufacturing Co., Ltd and Zhuoshang Enterprise Management Co.,Ltd. These four companies integrated their advantageous resources and inject them into Jiangxi Johnson Electric.
Main business of the company:
The main products and services of the company include porcelain insulators, industrial ceramics, mechanical equipment, metallic material, power transmission(transformation) equipment and accessories, high voltage power distribution service and technical consultation, domestic and foreign trade.
Enterprise culture:
Company core value: focus on foreign trade, service attentively!
Company future expectation: We'd like Johnson Electric China(pingxiang) to be famous all over the world.
Company three years' plan:
Output value of 2017 reaches to CNY20 million.
Output value of 2018 reaches to CNY30 million.
Output value of 2019 reaches to CNY50 million.


Since established, Johnson Electric is committed to conquer the international market using its own brand. Based on the advantageous resources of Pingxiang East China Export Electric Porcelain Co., Ltd, Pingxiang City HuaKun Electric Porcelain Manufacturing Co. Ltd and Pingxiang Qiangsheng Electric Porcelain Manufacturing Co., Ltd, using Zhuoshang Enterprise Management Limited as the management platform, with the help of Alibaba International Station and other sales platforms, Johnson Electric would like to start the expedition in the international market with the Pingxiang porcelain products.
