Quick Details
Description

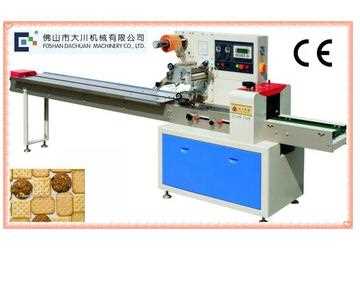

Type:Other, Small packaging machine
Condition:New
Application:Commodity, Food, Machinery & Hardware, Medical
Packaging Type:Bags
Packaging Material:Plastic
Automatic Grade:Semi-Automatic
Driven Type:Electric
Voltage:220V 50/60Hz
Power:2.4KW
Place of Origin:Guangdong, China (Mainland)
Brand Name:Dachuan
Model Number:DCWB-250B/250D/250E/250S/320B/320D
Weight:600Kg
Dimension(L*W*H):3770X670X1450
Certification:CE
After-sales Service Provided:Engineers available to service machinery overseas
Machine:Carbon steel or 304 stainless steel
Diagnosis:Self failure diagnosis
Temperature:Independent PID control
Stop:Positioned stop function
System:Simple driving system
Control:All control through software
Bag kinds:Linked bag,hang hole bag,etc
Screen:Interface features
Color tracing:high sensitivity photoelectric eye color tracing
I. Main performance and structure features
1. Double transducer control, flexible bag length cutting, operator needn’t to adjust the unloading working, saving time and saving films.
2. human-machine operation, convenient and quick parameter setting.
3.Self diagnosis failure function, clear failure display.
4. High sensitivity optical electric color mark tracking ,digital input cut position which makes the sealing and cutting more accurate.
5. Separate PID control to temperature, suitable for various packing materials.
6. Stopping the machine in selected position, no sticking to the knife and no waste packing film.
7. Simple driving system, reliable working, convenient maintenance.
8. .All the controls are achieved by software, convenient for function adjusting and upgrading.
II. Application
Suitable for packing regular objects such as biscuits,pies,chocolates,bread, instant noodles, moon- cakes,drugs,daily appliances, industrial parts, paper boxes ,plates,etc.
III. Optional device
1. Code applying machine
2. Extra big screen
IV.Specification
|
Type
|
DCWB-250B
|
DCWB-250D
|
DCWB-250E
|
DCWB-250S
|
DCWB-320B
|
DCWB-320D
|
|
|
Film Width
|
Max.250mm
|
Max.180mm
|
Max.320mm
|
|
Bag length
|
65-190 120-280mm
|
90-220mm
|
50-115mm
|
45-90mm
|
65-190 or
120-280mm
|
90-220 or
150-330mm
|
|
Bag width
|
30-110mm
|
30-80mm
|
50-160mm
|
|
Product height
|
Max.40mm
|
Max.55mm
|
Max.35mm
|
Max.40mm
|
Max.55mm
|
|
Film roll diameter
|
Max.320mm
|
|
Packaging speed
|
40-230bag/min
|
60-330bag/min
|
40-230bag/min
|
|
Power
|
220V 50/60Hz 2.4KW
|
220V 50/60Hz 2.4KW
|
220V 50/60Hz 2.6KW
|
|
Machine size
|
(L)3700 X (W)670 X (H)1450mm
|
(L)3770 X (W)720 X (H)
1450mm
|
|
Machine weight
|
About 600kg
|
About 630kg
|
|
Remarks
|
Optional Air filling device
|
Founded in 2002, Foshan Dachuan Machinery Co., Ltd. is a manufacturer specializing in the R&D and production of packing machinery.
As an advanced high-tech packing machinery company, we boast our automatic packing machinery with a range of pillows and vertical series. Our products are applicable for packing food, medicine, hardware, electric product, toy, daily chemical product, and paper for daily life. Meanwhile, we acquired CE certificate by the European Union in September, 2006.
Our company boasts a comprehensive marketing and after-sales service network. Our products have been exported to many countries and areas, such as Russia, Ukraine, Italy, Germany, Oceania, Romania, Costarica, Thailand, Vietnam, Malaysia, Turkey, India, and Iran.
Since our company was founded, we have been consecutively striving towards the goal to become an internationally advanced mechanical manufacturer, devoted to the cultivation of the excellent talents for the R&D of effective and productive mechanical manufacturing technology. We can supply customers with satisfied products and services.
Believe that we will be your best partner in the packing industry; you will achieve the best packing with the most economical cost.
