Quick Details
Description
Type:Other, DC-4230
Condition:New
Application:Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles, Other
Packaging Type:Bags, Capsule, Film, Foil, Pouch, Stand-up Pouch
Packaging Material:Paper, Plastic
Automatic Grade:Automatic
Driven Type:Electric
Voltage:220V/50HZ
Power:2.2KW, 220V 50/60HZ 2.2KW
Place of Origin:Guangdong, China (Mainland)
Brand Name:DACHUAN SAIDE
Model Number:DLP-4230
Weight:500kg
Dimension(L*W*H):1315*1023*1343MM
Certification:CE ISO
After-sales Service Provided:Engineers available to service machinery overseas
Film width:140-420mm
Bag length:80-300mm
Bag width:60-200mm
Film roll diameter:400mm
Packaging speed:5-60 bag/min
Range of measurements:150-1000ml
Film thickness:0.04-0.012mm
Machine weight:about 500kg
Product Description

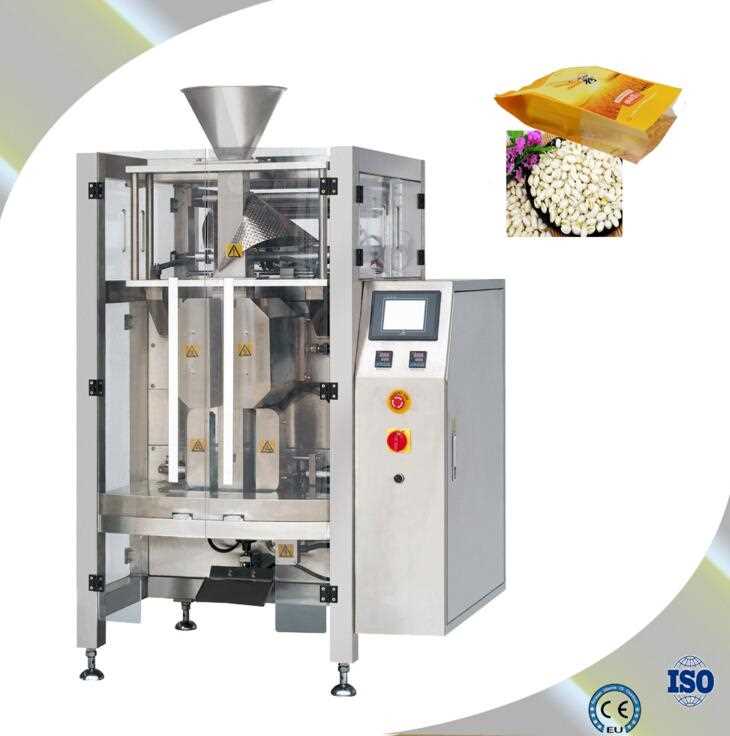

Vertical packaging machine packaging process through the material stretching feed device for feeding, plastic film through the film cylinder to form a cylinder, through the hot vertical sealing device to seal the side, while the packaging into the bag, the transverse sealing mechanism according to the color The standard photoelectric detection device cuts the packing length and position.
Scope of application
Automatic vertical packaging machine suitable for puffed food, shrimp, peanuts, popcorn, cereal, melon seeds, jelly, sugar, salt, detergent and other granular strips, short strip, powder strip material packaging.
Features
a. New design with perfect fashion, more reasonable structure, more advanced technology.
b. Imported PLC control systerm, colorful touch screen, easy operation, intuitionistic and efficient.
c. Standard positioning with imported servo film more quickly and convenient.
d. Adopt gas-pressure shaft clamping film structure. Film setting be more easy and quick.
e. Automatic correct function, save time, labor, and film, the operation more intelligent.
f. With many kinds of auto warning protection functions to minimize loss.
g. Varous kinds of bag, it could provide the pillow bag, angle folkding bag, hang hole bag, linked bag, etc.
Specification:
|
Model
|
BDP-420
|
|
Film width
|
150-420mm
|
|
Bag length
|
80-280mm
|
|
Front width of bag
|
80-132mm
|
|
Side width of bag
|
20-66mm
|
|
Longitudinal sealing width
|
5-10mm
|
|
Film roll diameter
|
Max.320mm
|
|
Packaging speed
|
10-40bag/min
|
|
Range of measurement
|
150-1500ml
|
|
Power
|
220V 50Hz 2.8KW
|
|
Machine size
|
(L)1390*(W)1155*(H)1800
|
Founded in 2002, Foshan Dachuan Machinery Co., Ltd. is a manufacturer specializing in the R&D and production of packing machinery.
As an advanced high-tech packing machinery company, we boast our automatic packing machinery with a range of pillows and vertical series. Our products are applicable for packing food, medicine, hardware, electric product, toy, daily chemical product, and paper for daily life. Meanwhile, we acquired CE certificate by the European Union in September, 2006.
Our company boasts a comprehensive marketing and after-sales service network. Our products have been exported to many countries and areas, such as Russia, Ukraine, Italy, Germany, Oceania, Romania, Costarica, Thailand, Vietnam, Malaysia, Turkey, India, and Iran.
Since our company was founded, we have been consecutively striving towards the goal to become an internationally advanced mechanical manufacturer, devoted to the cultivation of the excellent talents for the R&D of effective and productive mechanical manufacturing technology. We can supply customers with satisfied products and services.
Believe that we will be your best partner in the packing industry; you will achieve the best packing with the most economical cost.
