Quick Details
Description
- Type: Filling Machine
- Condition: New
- Application: Beverage, Food, Machinery & Hardware
- Packaging Type: Case
- Packaging Material: Wood
- Automatic Grade: Automatic
- Driven Type: Electric
- Voltage: 380V 50Hz
- Power: 5kw
- Place of Origin: Hebei, China (Mainland)
- Brand Name: HONG FA
- Model Number: HF-ZLD-A
- Dimension(L*W*H): 2170*2200*2960
- Weight: 1.2T
- Certification: CE Certificate
- After-sales Service Provided: Overseas service center available
- Function: Filling Capping Labeling
Quick Details
Type: Filling Machine, Filling Machine
Condition: New
Application: Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical
Packaging Type: Bags, Stand-up Pouch
Packaging Material: Plastic
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 220V/380V
Power: 4.5kw
Place of Origin: Hebei, China (Mainland)
Brand Name: Hongfa
Model Number: HF-ZLD-A
Dimension(L*W*H): 2100*2200*2960mm
Weight: 1.2T
Certification: CE ISO
After-sales Service Provided: No overseas service provided
Material: stainless steel
Application

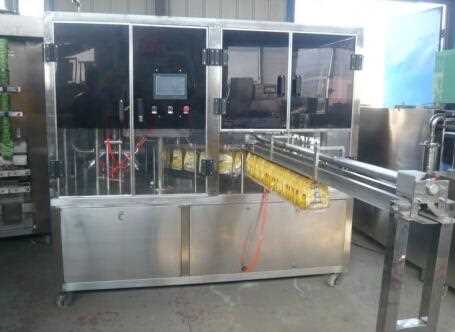

HFZLD-A used for stand-up pouch /Spout bag/doypack
This machine can pack any liquid such as juice, yogurt, water, jelly, soymilk, cooking oil, liquid soap etc. also used for semi-fluid liquid, for example, tomato sauce, jam and yogurt etc
Function and characteristics
HFZLD-A doypack filling machine is Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
Horizontal conveyer style to giving bag: It can put on more bags on the bag storage, save your time.
Fully automatic spout pouch supply, liquid filling, cap supply, cap arrange and capping.
Automatic quantitive filling and control liquid level.
Frequency conversion adjusts the speed: This machine uses frequency conversion equipment, packing speed can be adjusted easily within the range according to the needs of reality in production.
The capping device can be adjusted, so it is easy to make the cap loose or tight, ensure the cap make tight.
It matches with the glass safety door. The machine will stop working when you open the door. So that it could protect the safety of operators. At the same time, it could prevent dust.
Safety device: Machine has emergency stop device, protect from abnormal situations.
The whole machine adopts stainless steel material and international brand parts according to the food hygienic requirements, guarantee hygiene and security of the food.
Main specifications
|
National patent
|
ZL200420029268.X
|
|
Material
|
stainless steel
|
|
Type
|
HFZLD-A
|
|
State
|
new
|
|
Size
|
2100*2200*2960mm
|
|
Weight
|
about 1200kg
|
|
Power
|
5kw
|
|
Power supply
|
380/220V 50Hz/60HZ
|
|
Capacity
|
50-500ml/bag(can be special customized)
|
|
Efficiency
|
2500-3500bags/hour
|
|
Source
|
0.55-0.65m³/min
|
|
Package
|
wooden carton or plywood case
|
