Quick Details
Description
- Type: Filling Machine
- Condition: New
- Application: Beverage, Chemical
- Packaging Type: Bags, Pouch
- Packaging Material: Paper, Plastic
- Automatic Grade: Automatic
- Driven Type: Electric
- Voltage: 220V/380V
- Power: 7KW
- Place of Origin: Hebei, China (Mainland)
- Brand Name: YF
- Model Number: HF-WZJ-A
- Dimension(L*W*H): 4000*1900*3500mm
- Weight: 1800kg
- Certification: CE Certificate
- After-sales Service Provided: Engineers available to service machinery overseas
- Material: Stainless Steel

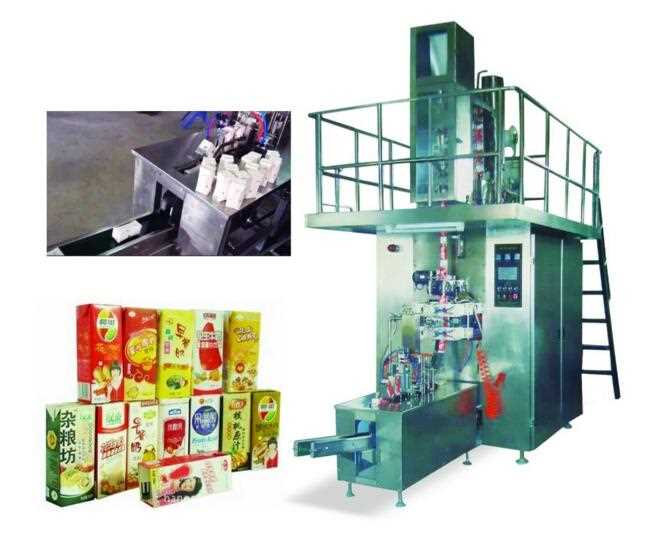

HF-WJZ Aseptic carton filling packing machine
<Type :HF-WJZ
<Filling volume :125ml 200ml 250ml 500ml 1L
<product name :Aseptic carton filling machine
< shelf life : 6-12 month
<Filling speed :3000-5000box/hour
<overall Dimensions :3200mm(L)x1500mm(W)x3350mm(H)
<Weight :2200kg
<power source:50HZ 380V
<Operating system :Human machine interface
<chilling system :pure water
<Installed power :15-19kw
<operational envroment :Temperature 15-30 degree ,Humidity 20-60%/rh
< Air source pressure :0.6-0.7Mpa
< Air consumption :0.6m3/min (0.6-0.7Mpa)
<Filling content temperature :15-25 degree
<steam consumption :4.5kg/hr
<Filling content viscosity :<30cp
<H2O2 concentration :35%
<H2O2 usage amount :0.7-1.2L/hr
Machine Features :
< 1 The machine is suitable for filling milk ,juice ,wine and other Beverage
<2 High automation ,convenient to operate
<3 Liquid level automatic control of filling volume can be more accurate
<4 we use the Full automatic splicing pp strip
<5 Main components use worldwide famous brand
Delievery :45-60days
payment Term :40% deposit after sign the contract ,The balance before shipment
Quality Guarantee :12 months after installation
